Double Needle Bar Raschel Machine RD5

Warp Knitting Double-needle bar raschel machine RD5 is for producing spacer air-mesh fabrics, such as air-mesh shoe uppers, knitted mattress fabrics, and industrial air-mesh fabrics.
RD5 model warp knitting machine width could be 210" width, and the working speed ranging from 20 to 800 rpm.
RD5 warp knitting machine adopts pattern discs as its pattern drive system, however, electrical pattern drive system is an optional. A-ZEN RD5 machine equipped with Groz-Beckert latch needles, and Saxonia ground guide needles.
  • RD5

  • A-ZEN

  • 138“,170", 210"

  • E18, E22, E24



      Warp Knitting Double-needle bar raschel machine RD5 is for producing spacer air-mesh fabrics, such as air-mesh shoe uppers, knitted mattress fabrics, and industrial spacer fabrics.

double needle bar spacer warp knitting machine (1)      RD5 model warp knitting machine width could be  210" width, and the working speed ranging from 20 to  800 rpm.

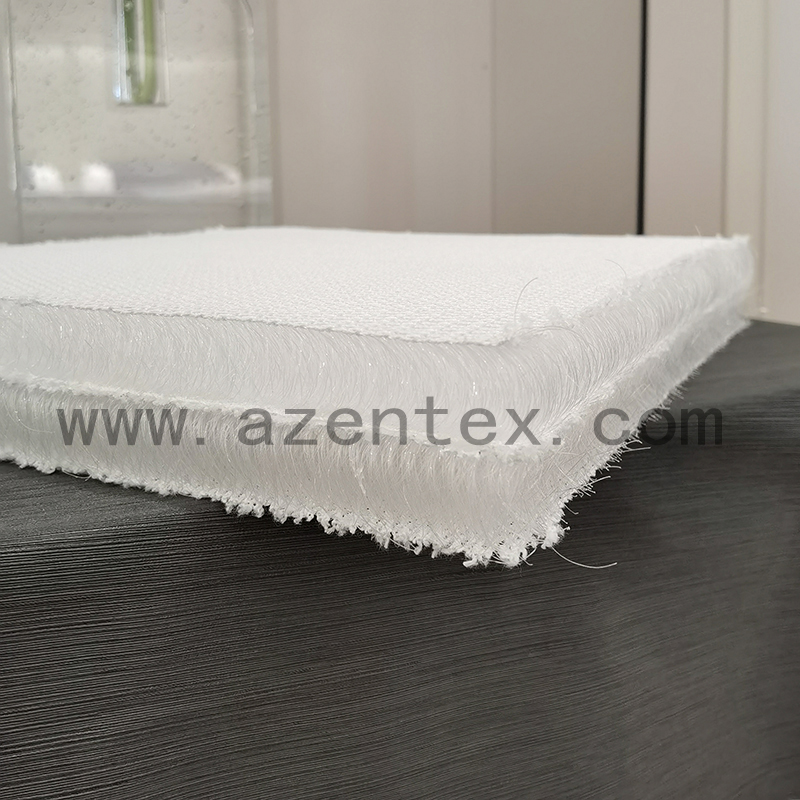

      RD5 warp knitting machine adopts pattern discs as its pattern drive system.  A-ZEN RD5 machine equipped  with Groz-Beckert latch needles, and Saxonia groundMattress Knitted Fabrics (1) guide needles.

      What's more, RD5 also produces industrial fabrics application (the spacer yarn replaced as functional yarn insetad of mono yarn), which used in the road construction and other reinforced textiles. So the application of RD5 is wide and promising.

      Meanwhile, A-ZEN also produce other typs double needle bar warp knitting machine, such as RD6, RD7, RDJ5/1, RDJ4/2, AZ2885

Product Description

1 Working Width/Gauge 138" ,170", 210"
2 Machine Gauge E18/E22/E24
3 Working Speed 50-800rpm (Depends on Yarn and Designs);
4 Knock-over Comb Bar Distance 2-12mm;
5 Bars/Knitting Elements 2 needle nars with lacth needle units (individual needle and needle block optional), 2knock-over come bars, and 6 ground bars;
6 Pattern Drive System Pattern Discs Drive or EL Drive (Optional);
7 Yarn Let-off Device EBC Yarn Let-off System;
8 Fabric Take-up Electronical Fabric Take-up System;
9 Batching Device Electronical Batching Device;
10 Laser Stop Detector and Online Service Program; Equipped.
11 Air Blower Device Optional.
12 In-house test Optional.

Double Needle Bar Machine RD5 Features

1. Stable Working Performance;

2. Reliable Spare-parts Partners

(1) Needle Elements Suppliers: Groz-Beckert, Saxonia;

(2) EL Drives Suppliers: Mitsubishi, Nidec, Yasagawa (3 Brands Optional);

(3) Bearing Suppliers: NSK, INA, FAG;

(4) Needle Beds and Bars Material: Magnalium Material;

(5) Electrical Elements Suppliers: Schneider, Siemens, Omron, INVT;

(6) Take-up Belt: Bobotex.

3. Overseas Service Team: Türkiye, India, Egypt, Indonesia, Pakistan, and Iran.

Machine Images

RD6 Individual Needles

Individual Latch Needles

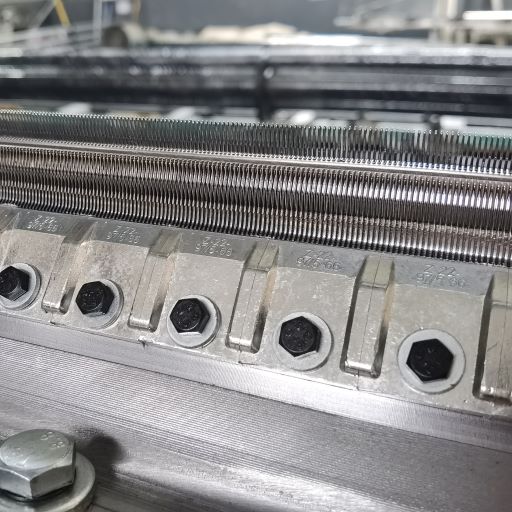

RD6 Latch Needles

Block Latch Needles

double needle bar spacer warp knitting machine (1)

warp knitting knock-over comb bar

Knock-over comb bar

double needle bar machine knitting farbic spacer fabric

double needle bar spacer warp knitting machine (2)

Air-mesh spacer fabric production

warp knitting pattern disc

Pattern disc drum

warp knitting production

Shoes Uppers Warp Knitting Machine Running Vedios

RD5-EL: 210" width for producing air-mesh spacer in China  210" RD5-EL

RD6-EL running for producing airmesh sports shoes textile in Turkey.
