Raschel Machine

Raschel Machines are for producing high-stretch warp-knitted fabrics. RSE4(EL) and RSE6(EL) are the most two welcome raschel rapidel machine models. The obvious advantages of raschel machine lie in its fast speed, huge productivity, capability of heavy-wight fabrics, and pattern creativity.
The application of RSE type raschel warp knitting machines is very wide, such as swimwear, shoes upper, chair fabrics, elastic knitted fabrics, and outer garments.

Model:
RSE4-EL, RSE6-EL
Brand:
A-ZEN
Width:
130", 200"
Gauge:
E14, E18, E20, E24

Availability:



Inquiry

Product Description

Overview of A-ZEN RSE Raschel Warp Knitting Machine

Raschel Machines are for producing high-stretch warp-knitted fabrics. RSE4(EL) and RSE6(EL) are the most two welcome raschel machine models. The obvious advantages of raschel machine lie in its fast speed, huge productivity, capability of heavy-wight fabrics, and pattern creativity.

The application of RSE type raschel warp knitting machines is very wide, such as swimwear, shoes upper, chair fabrics, elastic knitted fabrics, and outer garments.

RSE4-EL is the fastest Raschel Warp Knitting Machine, the speed of which could arrive more than 1,000rpm.

Now, RSE4-EL is more welcome by the markets because of its stable performance in producing heavyweight warp-knitted fabric, which used as shoe uppers.

Raschel Machine Features:

1. Stable Working Performance;

2. Reliable Spare-parts Partners

(1) Needle Elements Suppliers: Groz-Beckert, Saxonia;

(2) EL Drives Suppliers: Mitsubishi, Nidec, Yaskawa;

(3) Bearing Suppliers: NSK, INA, FAG;

(4) Needle Beds and Bars Material: Magnalium Material;

(5) Electrical Elements Suppliers: Schneider, Siemens, Omron, INVT;

(6) Take-up Belt: Bobotex.

3. Overseas Service Team:

Türkiye, India, Egypt, Indonesia, and Iran.

PDF Documentation for RSE Raschel Machine

PDF Icon RSE Raschel Machine Catalogue

Technical Details of RSE Raschel Machine

Technical Specifications

1, Working Width/Gauge	130", 200"/E14, E18, E20, E24;
2, Working Speed	50-1000rpm (Depends on Yarn);
3, Pattern Drive System	Pattern Discs Drive or EL Drive (Optional);
4, Yarn Let-off Device	EBC Yarn Let-off System;
5, Fabric Take-up	Electronical Fabric Take-up System;
6, Batching Device	Electronical Batching Device;
7, Laser Stop Detector	Equipped;
8, Online Support	Teamview Program.

Innovations & Advantages

Ensures consistent output for 3D mesh textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Needle Beds and Bars (Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex).
The EBC yarn let-off system reduces energy consumption by up to 15%.
Mitsubishi EL drives ensure accurate 3D mesh patterns for diverse applications.
Magnalium needle beds and NSK bearings enhance machine longevity.

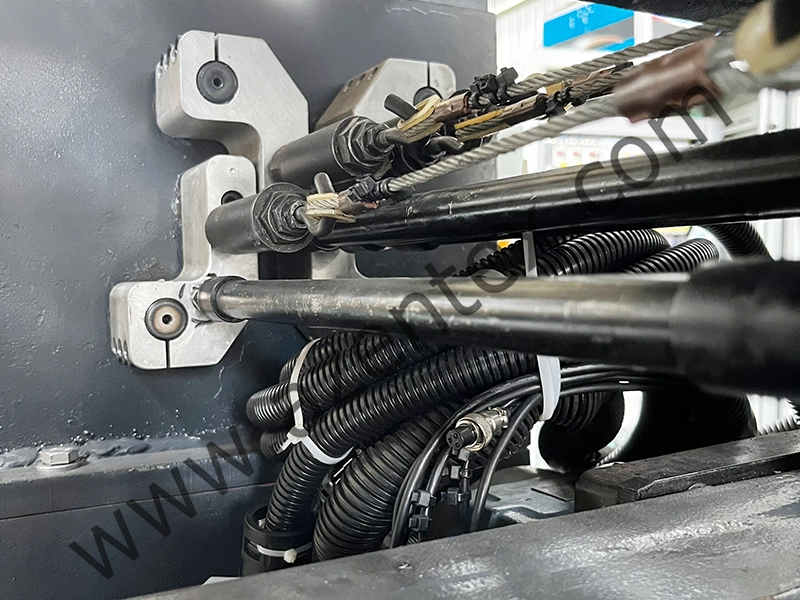

Four Ground Bars Driven By Electrical System

Durable Machine Structure

Strong Structure & Durable Parts

In-house Production Test Before Delivery

Heavyweight Warp-knitted Fabrics

Heavyweight Warp-knitted Fabrics

Applications of RSE Raschel Fabrics

polyester-sofa-velvet-warp-knitting-tricot

Swimwear

Shoe Uppers

Chair Fabrics

Video: RSE Raschel Machine in Production

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

RSE vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
RD6-EL	138", 210"	600-750	3D spacer fabrics, sports shoes, automotive seats
RD7	138", 200"	500-700	General warp knitted fabrics
AZ2885	90", 100", 186", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
RSE4-EL	130", 200"	50–1000	Swimwear, shoe uppers, chair fabrics, outer garments

Sustainable Textile Production with RSE

The RSE’s energy-efficient EBC system reduces power consumption by up to 15%, and its compatibility with eco-friendly yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About RSE Raschel Machine

Q: You are a trading company or a manufacturer

A: We are a manufacturer since 2012, and we have our own trading company in 2017, the brand of which is A-ZEN, which is specialized in importing and exporting services.

Q: Do you offer local service?

A: We provide local service in India, Turkey, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries in the near future.

Q: How do you provide service if Chinese engineers can not come installation

A: Before machine delivery, we have an in-house test process, to make sure the machine performs perfectly. After the machine arrives, we provide an in-time online guide to support our customers finish machine installation.

Q: How do you ensure your machine quality

A: Firstly, we produce and provide lots of machines to the market, and our machines' lifespan and quality ensured by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechnical and electrical parts are durable.

Besides, we have regular service to customers, to check the quality of our machines and remind customers of maintenance, so our customers could run machine always in stable performance.
