Multibar Jacquard Raschel Lace Machine

Multibar jacquard raschel lace warp knitting machine is for producing patterned lace trim or all-over fabrics with various grounds.

There are different machine models of multibar jacquard raschel lace machines, they are divided based on the pattern bars amount and the working position of the piezo-jacquard bar.

The fabric of multibar jacuqard raschel lace machine is widely used as lace trim, lace galloons, rigid all-over fabrics for ladies' outerwear as well as intimate apparel.

Model:
MSJ43/1, MSJ59/1, MSJ65/1, MSJ73/1, MSJ83/1, MSJ91/1
Brand:
A-ZEN
Width:
134", 200", 242", 268"
Gauge:
E18, E24

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN Multibar Jacquard Raschel Lace Machine

Multibar jacquard raschel lace warp knitting machine is for producing patterned lace trim or all-over fabrics with various grounds.

There are different machine models of multibar jacquard raschel lace machines, they are divided based on the pattern bars amount and the working position of the piezo-jacquard bar, which makes fabric grounds or patterns.

The fabric of the multibar jacquard raschel lace machine is widely used as lace trim, lace galloons, rigid all-over fabrics for ladies' outerwear as well as intimate apparel.

Machine Features:

1) Optional machine models to fit different market demands;

2) A flexible string bar makes it easier to change pattern width;

3) Market-tested parts make it low maintenance;

4) Positive pattern beam drives are available;

5) Quick design file load, and user-friendly touch screen.

PDF Documentation for Multibar Jacquard Raschel Lace Machine

PDF Icon Multibar Jacquard Raschel Lace Machine PDF

Technical Details of Multibar Jacquard Raschel Lace Machine

Technical Specifications

Working Speed: 20-700rpm (depends on yarn and designs);

Working Width: 134", 200", 242", 268";

Gauge: E18, E24;

Bars Arrangement: See Machine Leaflets;

Pattern Drive System: Full Bars EL Drive;

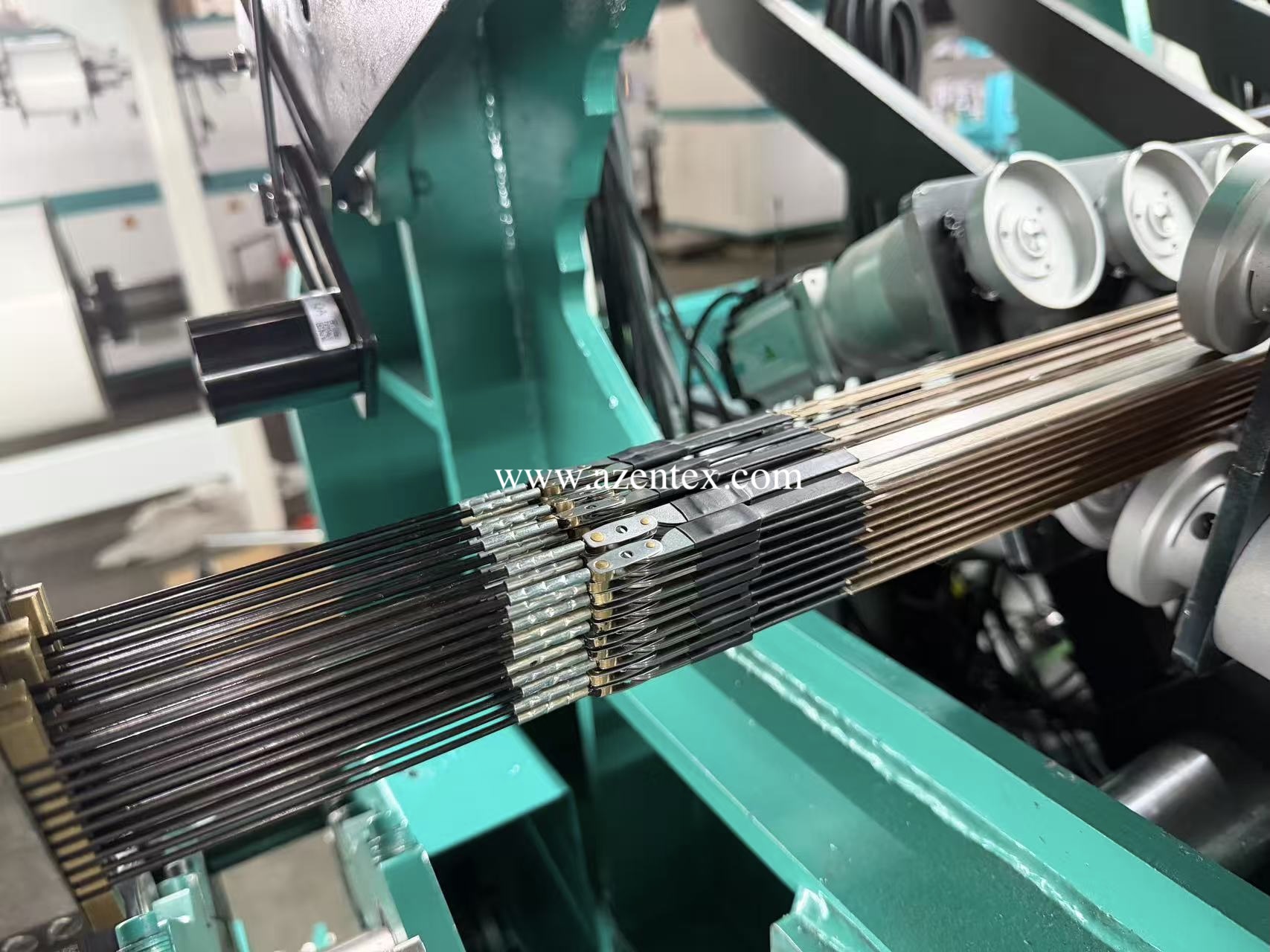

Pattern Needles: Flexible String Needles;

Shogging Distance: 170mm;

Yarn Let-off Device: EBC Let-off;

Fabric Take-up Device: Electronical take-up device;

Beams: Φ30”*21", Φ21”*21"(Spandex Beam);

Main Power: 5.5KW(134"), 11KW(200", 242", 268");

Innovations & Advantages

Ensures consistent output for 3D mesh textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Needle Beds and Bars (Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex).
The EBC yarn let-off system reduces energy consumption by up to 15%.
Mitsubishi EL drives ensure accurate 3D mesh patterns for diverse applications.

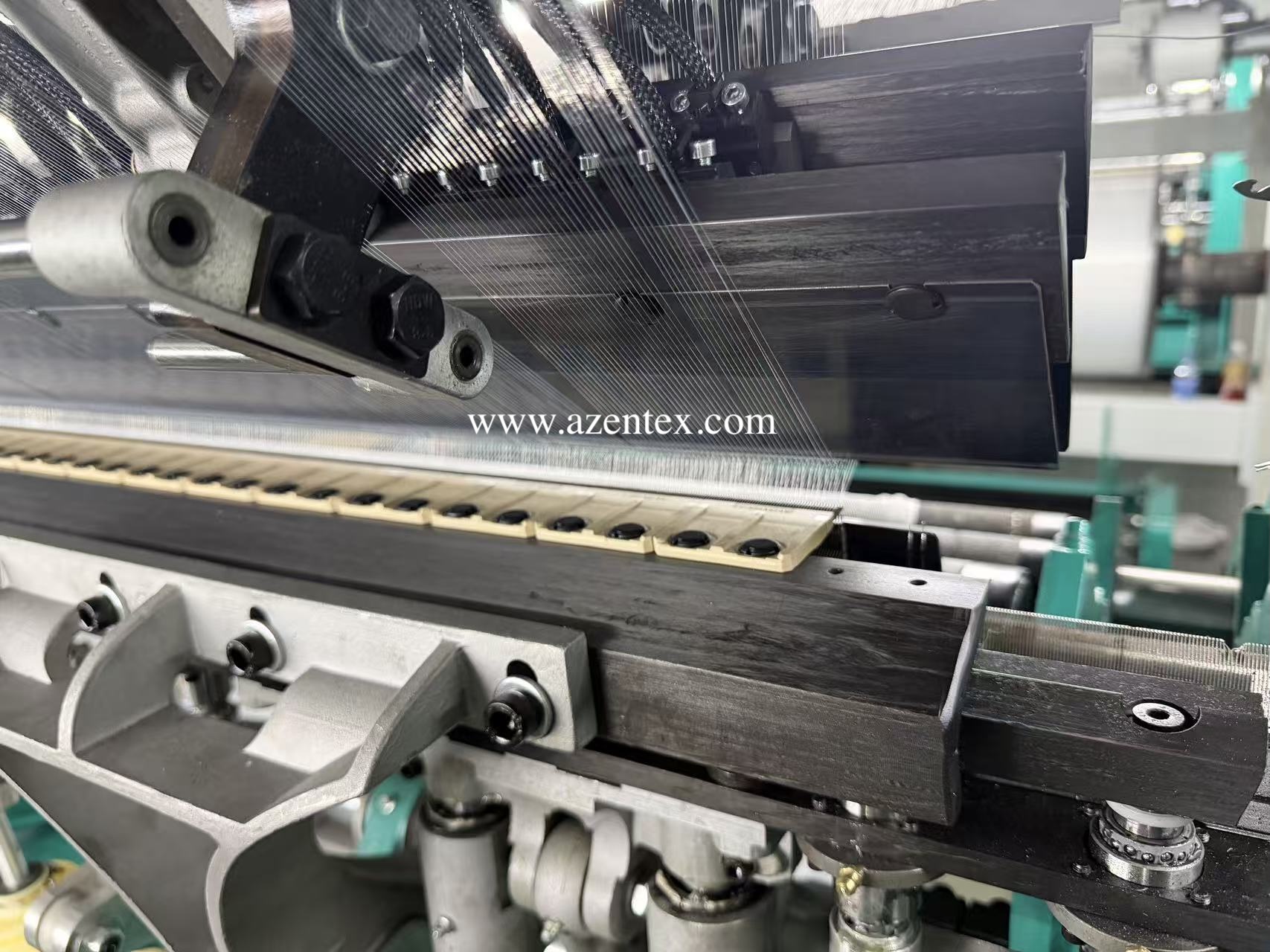

Magnalium needle beds and NSK bearings enhance machine longevity.

Lace Warp Knitting Machine

Raschel Lace Fabric

Lace Fabric Production

Multibar Lace Machine

Lace Machine Operation

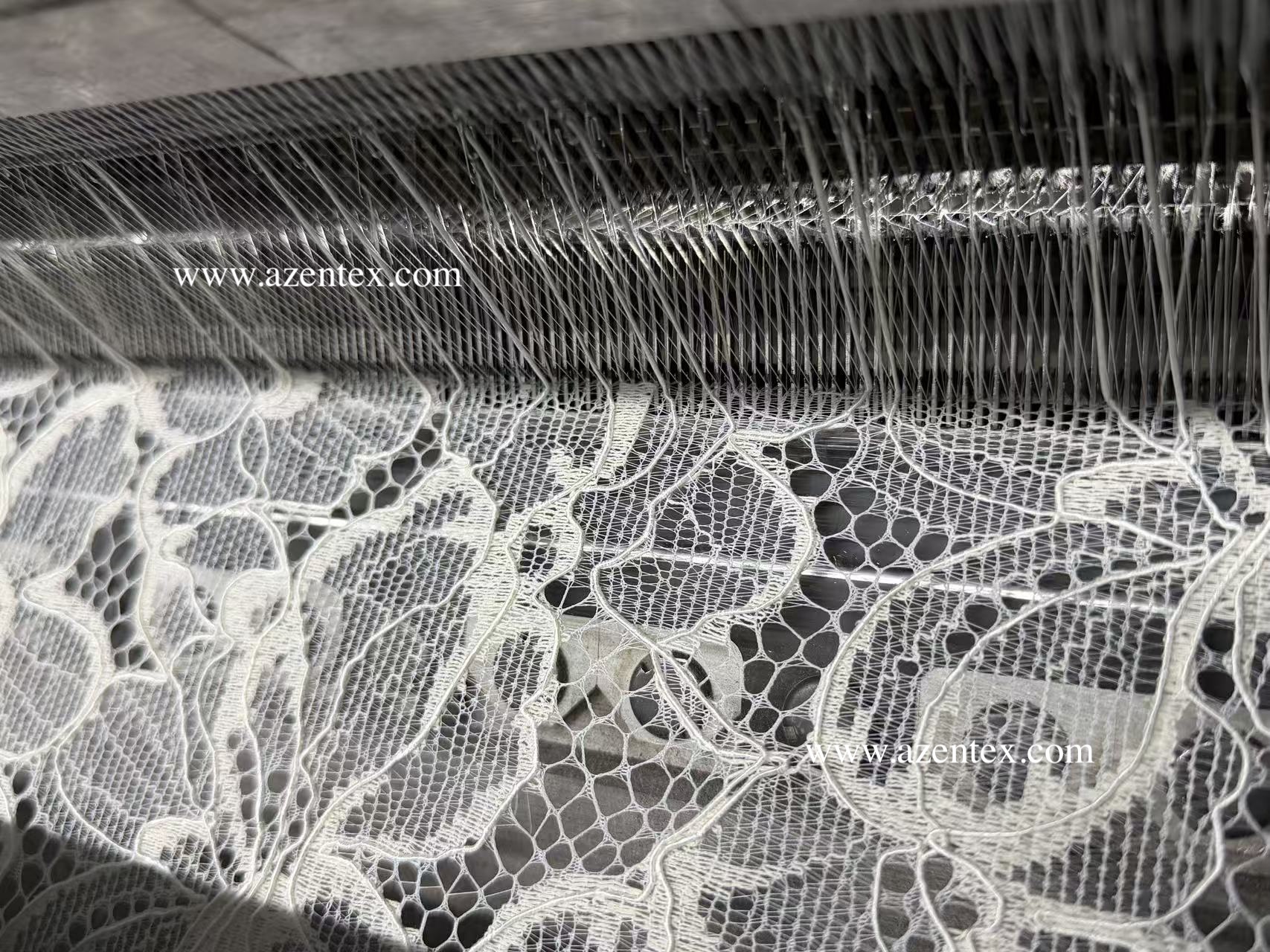

Applications of Multibar Jacquard Raschel Lace Fabrics

Lace Trim

Lace Galloon

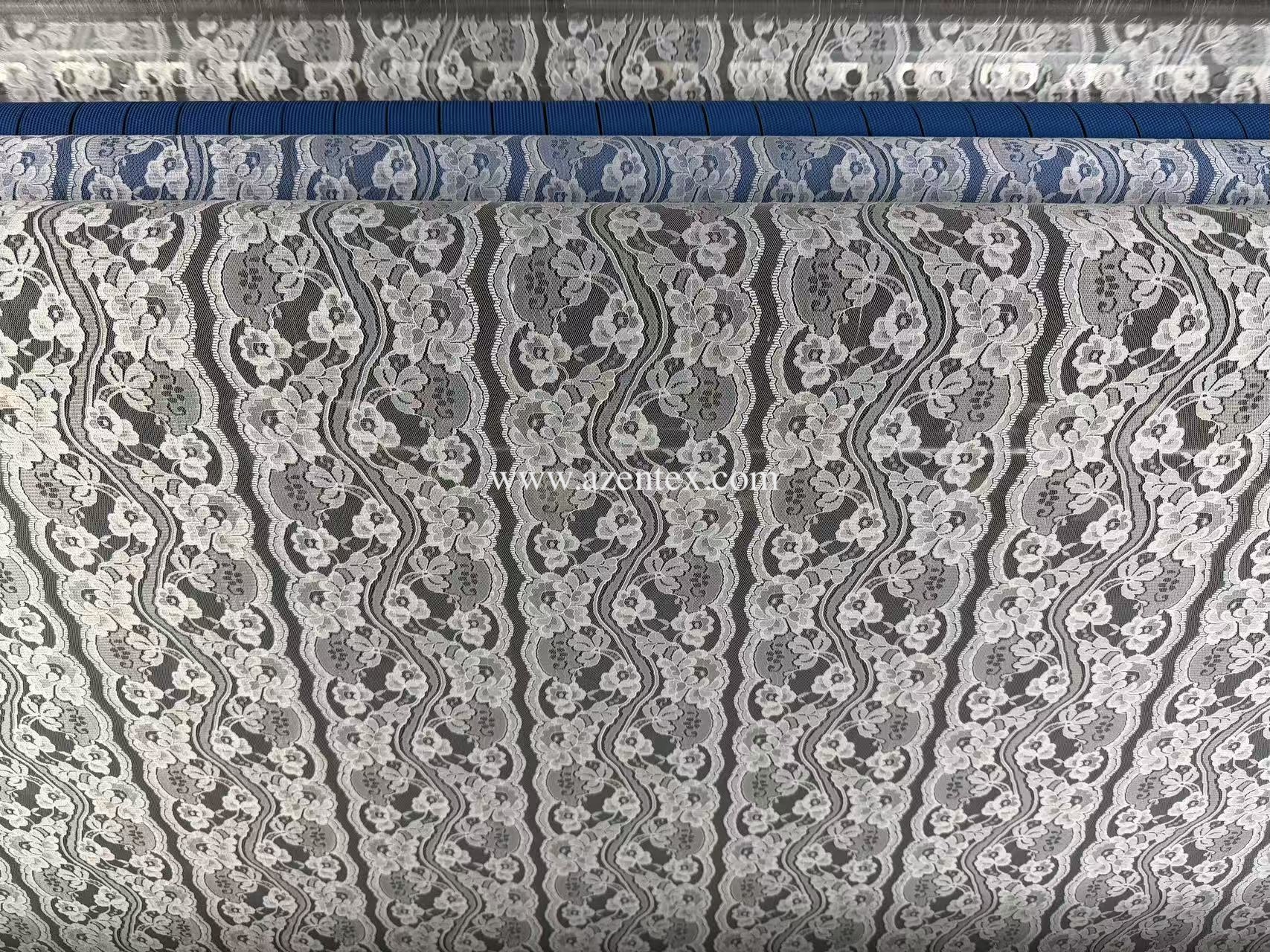

All-Over Lace

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

Multibar Jacquard Raschel Lace Machine vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
RD6-EL	138", 210"	600-750	3D spacer fabrics, sports shoes, automotive seats
RD7	138", 200"	500-700	General warp knitted fabrics
AZ2885	90", 100", 186", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
Multibar Jacquard	134", 200", 242", 268"	20-700	Lace trims, galloons, all-over lace fabrics

Sustainable Textile Production with Multibar Jacquard Raschel Lace Machine

The machine’s energy-efficient design reduces power consumption by up to 15%, and its compatibility with eco-friendly yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About Multibar Jacquard Raschel Lace Machine

Q: You are a trading company or a manufacturer?

A: We are a manufacturer since 2012, and we have our own trading company in 2017, the brand of which is A-ZEN, which is specialized in importing and exporting services.

Q: Do you offer local service?

A: We provide local service in India, Turkey, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries in the near future.

Q: How do you provide service if Chinese engineers can not come installation

A: Before machine delivery, we have an in-house test process, to make sure the machine performs perfectly. After the machine arrives, we provide an in-time online guide to support our customers finish the machine installation.

Q: How do you ensure your machine quality

A: Firstly, we produce and provide lots of machines to the market, and our machines' lifespan and quality ensured by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechanical and electrical parts are durable.

Besides, we have regular service to customers, to check the quality of our machines and remind customers of maintenance, so our customers could run machine always in stable performance.
