Cotton Towel Machine

Cotton towels are loved by consumers for their soft texture, good water absorption, and skin-friendly properties. Cotton yarn towels are widely used in face towels, bath towels, and beach towels.
TS4-C is a high-performance terry machine for producing microfiber terry towels as well as staple fibers or cotton cloth terry fabrics. Cotton towels pile height could reach 12mm and the weight could be nearly 600gsm.
Changzhou A-ZEN textile machinery company is a professional terry towel warp knitting machine producer in China, the working width of which is 186", and 218" at E24 gauge.

A-ZEN textile provides a complete range of machines for the production of warp knitted terry fabrics:

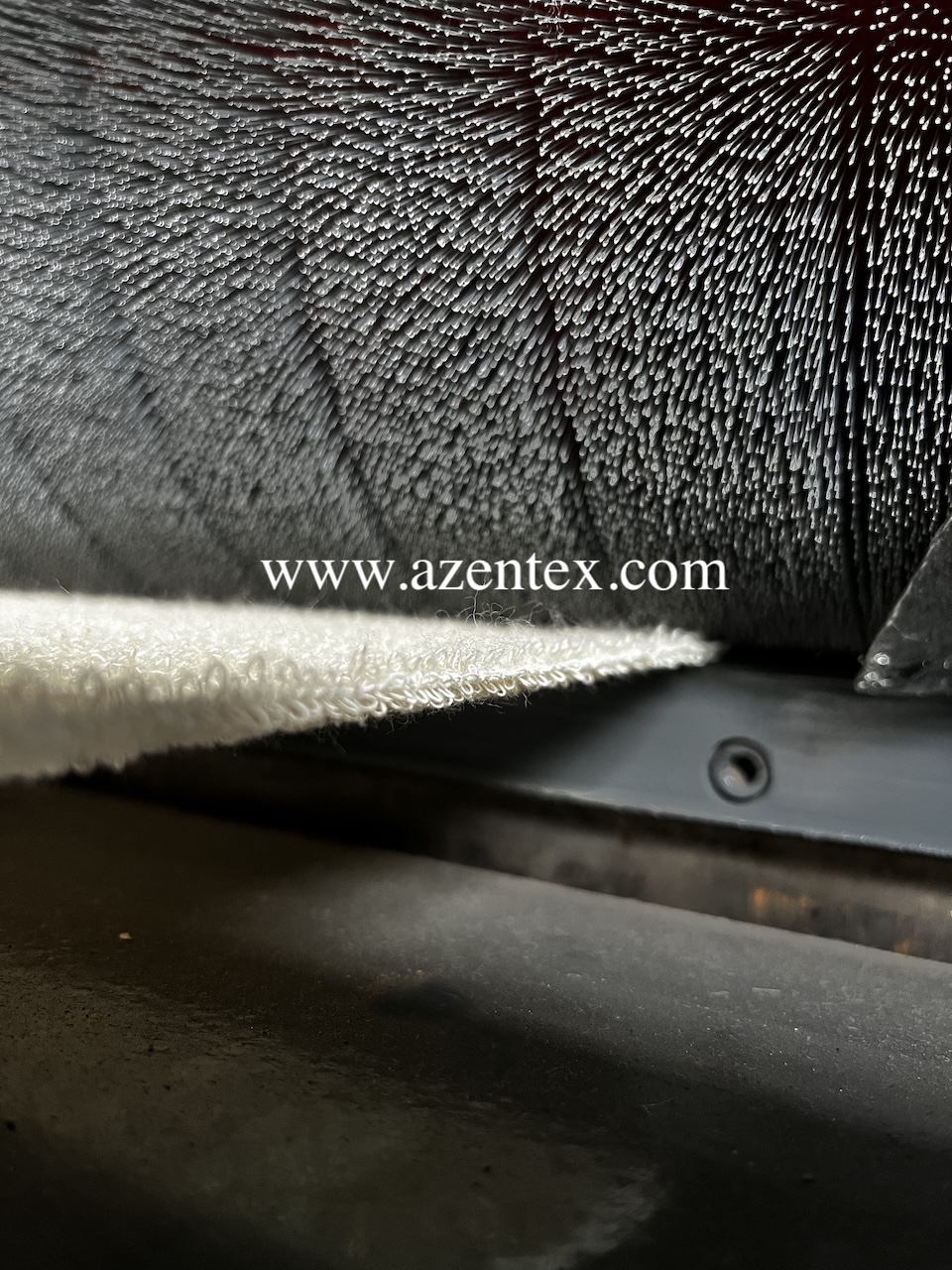

• Warp knitting machines with online brushing
• Warping machines for filament yarns
• Warping machines for staple fiber yarns

Model:
TS4-C
Brand:
A-ZEN
Width:
186", 218",280"
Gauge:
E24

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN TS4-C Cotton Towel Machine

Cotton towels are loved by consumers for their soft texture, good water absorption, and skin-friendly properties. Cotton yarn towels are widely used in face towels, bath towels, and beach towels.

TS4-C is a high-performance terry machine for producing microfiber terry towels as well as staple fibers or cotton cloth terry fabrics. Cotton terry pile height could reach 12mm, and the weight could be nearly 600gsm.

Changzhou A-ZEN Textile Machinery Company is a professional terry towel warp knitting machine producer in China, offering working widths of 186" and 218" at E24 gauge.

Specification of Warp-knitted Cotton Towels:

Weight: Cotton towels can reach up to 600gsm, and the most popular weight ranges from 350gsm to 550gsm.
Two Sides Piles: Back side loops are usually 4mm in length, while the front pile length ranges from 5–12mm.
Cotton Count: 12Ne, 16Ne, 21Ne, and cotton-polyester combined yarns are the most commonly used on warp knitting terry machines.

Machine Features:

1. Stable Working Performance

The large working width and high-speed performance make the TS4-C towel knitting machine an exceptionally productive solution for terry fabric manufacturing.
With a 280-inch model, the daily output can reach up to 2 tons, ensuring maximum efficiency for large-scale towel production.

2. Reliable Spare Parts Partners

A-ZEN collaborates with globally recognized suppliers to ensure every warp knitting machine delivers consistent performance and long-term reliability.

（1）Needle Elements: Groz-Beckert, Saxonia

（2）EL Drives: Yaskawa

（3）Bearings: NSK, INA, FAG

（4）Needle Beds & Guide Bars: Reinforced Carbon Fiber Material

（5）Electrical Components: Schneider, Siemens, Omron, INVT

（6）Take-up Belt: Bobotex

3. Overseas Service Team:

Türkiye, India, Egypt, Indonesia, Germany, and Iran.

Advantages of Warp Knitting Terry Machines: Warp-Knitted Towels Are Environmentally Friendly

1. Energy-Saving Production

TS4-C warp knitting machine eliminates the need for sizing and desizing, significantly reducing water and energy consumption during production.

2. Versatile Yarn Compatibility
The TS4-C can process a wide range of yarns — polyester, cotton, and pre-dyed yarns — without requiring additional machine adjustments.

3. Flexible Finishing Options
Microfiber towels produced on the TS4-C can be embossed, digitally printed, or dyed, offering easy and flexible finishing possibilities.

4. Durable & Low-Maintenance Design
A-ZEN warp knitting machines are built with high-quality electrical and mechanical components, resulting in longer lifespan and reduced maintenance costs.

PDF Documentation for TS4-C Cotton Towel Machine

PDF Icon TS4-C Cotton Towel Machine Catalogue

Technical Details of TS4-C Cotton Towel Machine

Technical Specifications

1	Working Width/Gauge	186",218",280"/E24;
2	Working Speed	50-750rpm (Depends on Yarn and Designs);
3	Bars/Knitting Elements	Individual Needle Bar with Compound Needles, Tongue Needles, 4 Guide Bars. All Bars and Beds are Made of Carbon-fiber-reinforced Material.
5	Pattern Drive System	Pattern Discs Drive or EL Drive (Optional);
6	Yarn Let-off Device	EBC Yarn Let-off System;
7	Fabric Take-up	Electrical Fabric Take-up System;
8	Batching Device	Electrical Batching Device;
9	Laser Stop Detector and Online Service Program	Equipped;
10	Air Blower Device	Equipped;
11	Individual Brushing Batching Device.	Equipped;

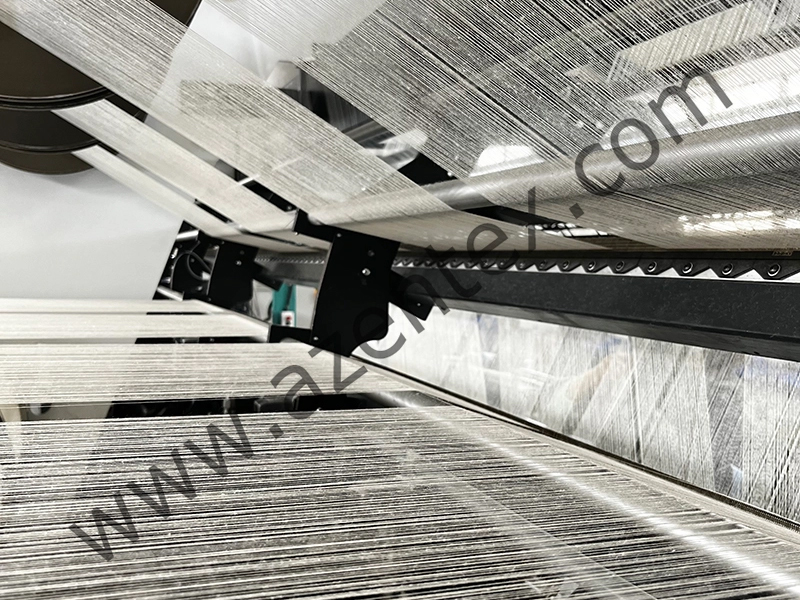

TS4-C Cotton Towel Machine

TS4-C Cotton Towel Machine

TS4-C Cotton Towel Machine

TS4-C Cotton Towel Machine

TS4-C Cotton Towel Machine

Applications of Warp-Knitted Cotton Towels

Face Towels

Bath Towels

Cotton towels are widely used as bathrobes, beach towels, beach kimonos, and washcloths because of their outstanding water-absorbing quality and skin affinity.

Video: TS4-C Cotton Towel Machine in Production

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

TS4-C vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
AZ2885	90", 100", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
TS4C	186", 218"	50–1400	Microfiber terry towels, bathrobes, washcloths

Sustainable Textile Production with TS4-C

The TS4-C’s energy-efficient EBC yarn let-off system reduces power consumption by up to 15%, and its compatibility with eco-friendly cotton and polyester-blended yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About TS4-C Cotton Towel Machine

Q: You are a trading company or a manufacturer

A: We are a warp knitting manufacturer covering a factory and a trading company since 2012.

Q: Do you offer local technical service for terry machine installation?

A: Because of the COVID-19 situation, we now provide on-time online service. But we can provide local service in India, Turkey, Egypt, Indonesia, Pakistan, and Iran so far. Meanwhile, we will enlarge our service teams in more countries in the near future to provide better service for our customers
