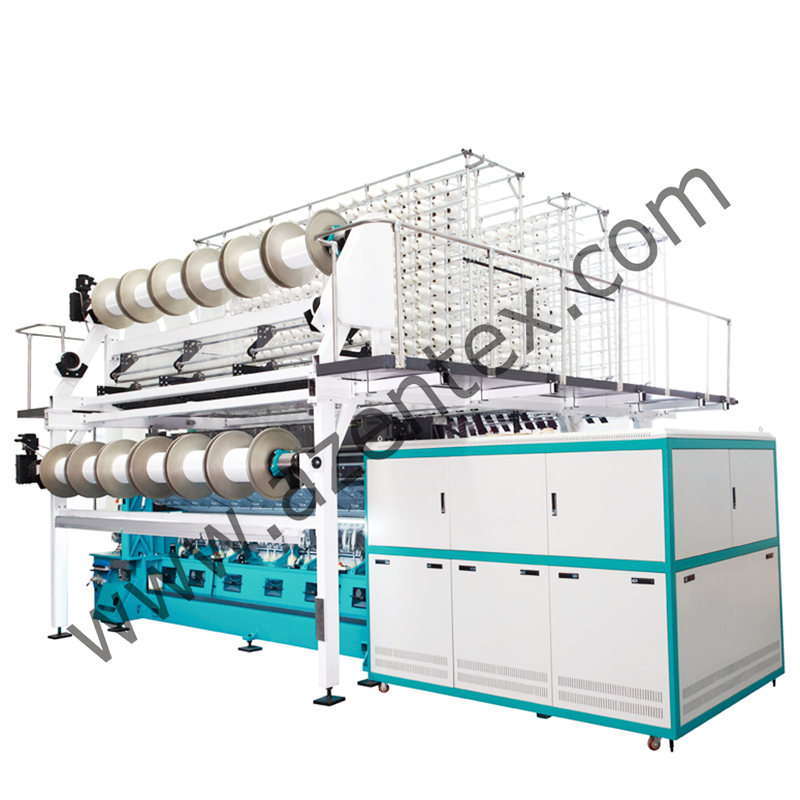

Raschel Lace Warp Knitting Machine

Raschel lace machine refers to the multibar raschel lace warp knitting machine, including MS45, and MS46. Raschel lace machine produces lace trim, lace galloons, rigid all-over fabrics for ladies' outerwear as well as intimate apparel. Besides, raschel lace machine is also designed to produce curtain fabrics.

Model:
MS45, MS46
Brand:
A-ZEN
Width:
134", 200", 242"
Gauge:
E18, E24

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN Raschel Lace Warp Knitting Machine

Raschel lace machine refers to the multibar raschel lace warp knitting machine, including MS45, and MS46. Raschel lace machine produces lace trim, lace galloons, rigid all-over fabrics for ladies' outerwear as well as intimate apparel. Besides, raschel lace machine is also designed to produce curtain fabrics.

MS45, and MS46 serve as the most stable running multibar raschel lace machines over the years, which have a strong pattern ability. Besides the mature computerized system applied and flexible pattern bars configuration, A-ZEN multibar raschel warp knitting machines are becoming more stable and productivity.

Machine Features:

Two alternative bar configurations to fit different market demand;

Flexible string bar make it easier to change pattern width;

Market-tested parts make it low maintenance;

Positive pattern beam drives available.

PDF Documentation for Raschel Lace Warp Knitting Machine

PDF Icon Raschel Lace Machine PDF

Technical Details of Raschel Lace Warp Knitting Machine

Technical Specifications

Working Speed: 20-700rpm (depends on yarn and designs);

Working Width: 134", 200", 242";

Gauge: E18, E24;

Bars Arrangement: 2GB+ 41PB+ 2GB(Spandex), or 3GB+ 41PB+ 1GB(Spandex);

Pattern Drive System: Full Bars EL Drive;

Pattern Needles: Flexible String Needles;

Shogging Distance: 170mm;

Yarn Let-off Device: EBC Let-off;

Fabric Take-up Device: Electronical take-up device;

Beams: Φ30”*21", Φ21”*21"(Spandex Beam);

Main Power: 5.5KW(134"), 11KW(200", 242");

Innovations & Advantages

Ensures consistent output for 3D mesh textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Needle Beds and Bars (Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex).
The EBC yarn let-off system reduces energy consumption by up to 15%.
Mitsubishi EL drives ensure accurate 3D mesh patterns for diverse applications.
Magnalium needle beds and NSK bearings enhance machine longevity.

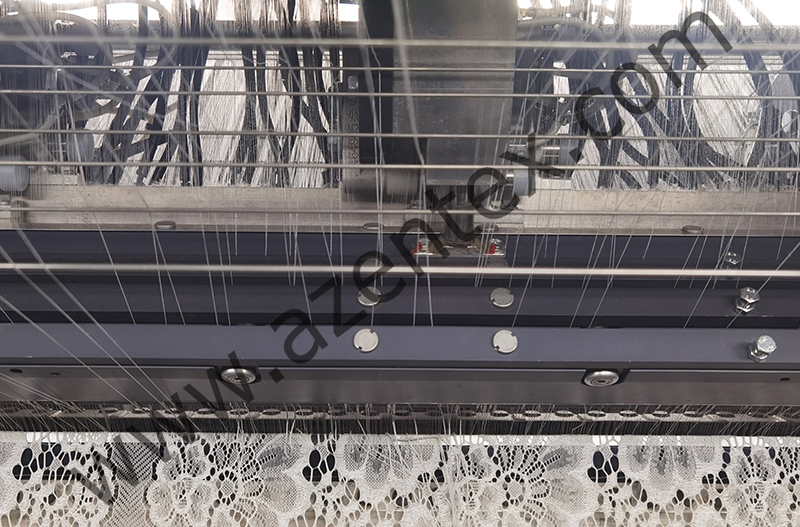

Lace Warp Knitting Machine

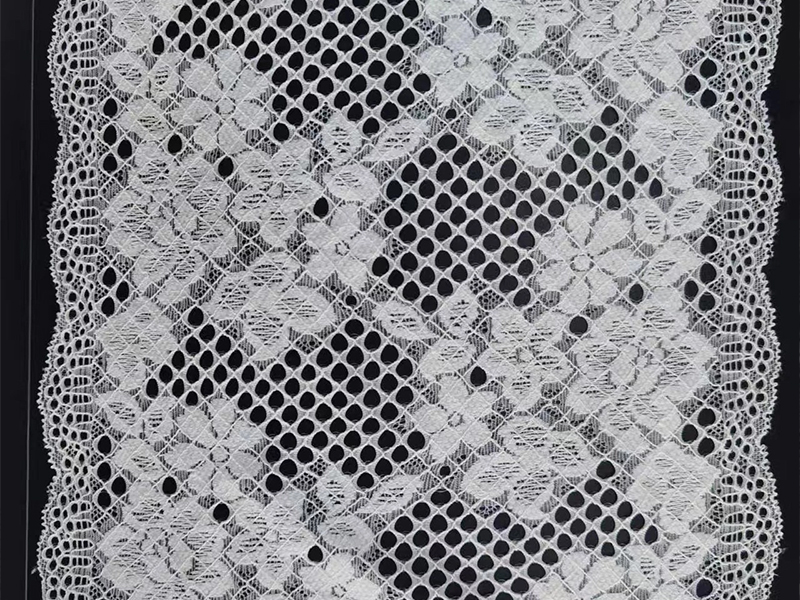

Raschel Lace Fabric

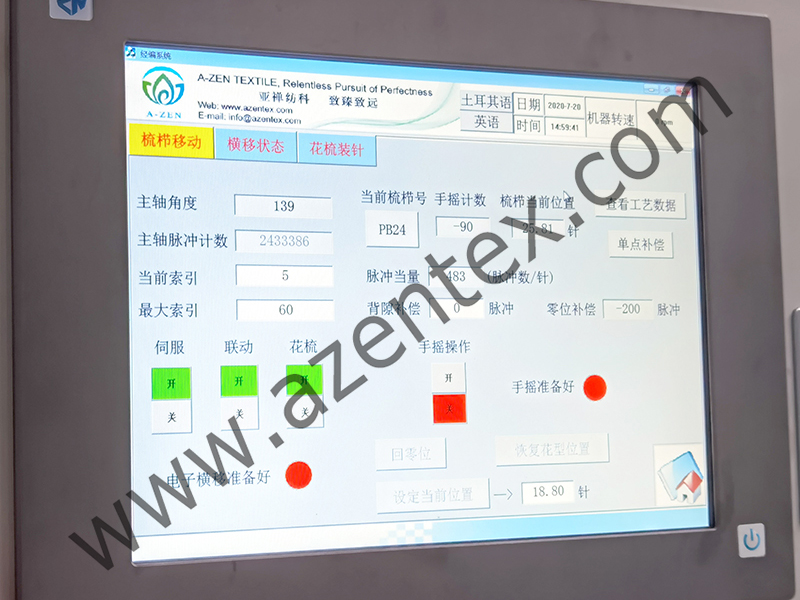

Multibar Lace Production

Lace Curtain Application

Applications of Raschel Lace Fabrics

Lace Trim

Lace Galloon

All-Over Lace

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

Raschel Lace Machine vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
RD6-EL	138", 210"	600-750	3D spacer fabrics, sports shoes, automotive seats
RD7	138", 200"	500-700	General warp knitted fabrics
AZ2885	90", 100", 186", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
MS45/MS46	134", 200", 242"	20-700	Lace trims, galloons, all-over lace, curtain lace

Sustainable Textile Production with Raschel Lace Machine

The machine’s energy-efficient design reduces power consumption by up to 15%, and its compatibility with eco-friendly yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About Raschel Lace Warp Knitting Machine

Q: You are a trading company or a manufacturer?

A: We are a manufacturer since 2012, and we have our own trading company in 2017, the brand of which is A-ZEN, which is specialized in importing and exporting services.

Q: Do you offer local service?

A: We provide local service in India, Turkey, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries in the near future.

Q: How do you provide service if Chinese engineers can not come installation

A: Before machine delivery, we have an in-house test process, to make sure the machine performs perfectly. After the machine arrives, we provide an in-time online guide to support our customers finish the machine installation.

Q: How do you ensure your machine quality

A: Firstly, we produce and provide lots of machines to the market, and our machines' lifespan and quality ensured by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechanical and electrical parts are durable.

Besides, we have regular service to customers, to check the quality of our machines and remind customers of maintenance, so our customers could run machine always in stable performance.
