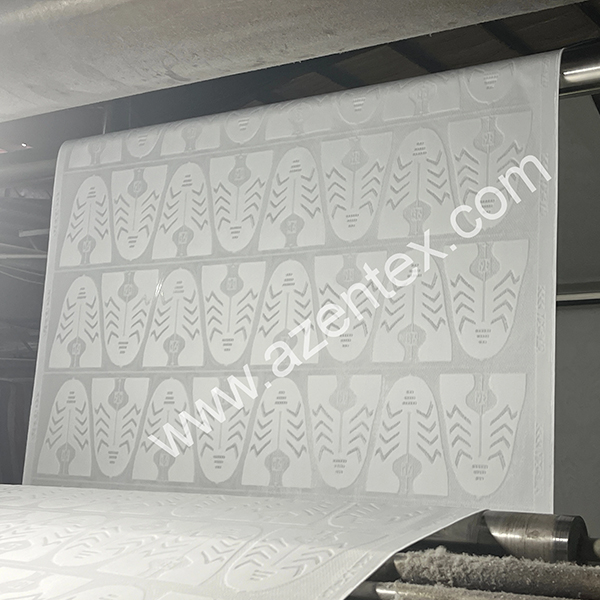

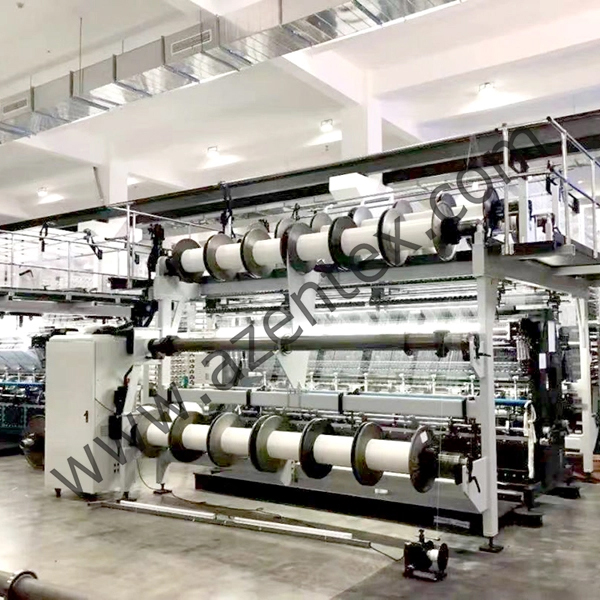

Jacquard Double Needle Bar Machine RDJ6/2

Elevate your shoe upper production to new heights with the RDJ6/2 Double Needle Bar Jacquard Warp Knitting Machine by A-ZEN. Engineered to perfection, this state-of-the-art equipment delivers unparalleled quality, efficiency, and reliability, making it the ultimate choice for manufacturers seeking to produce premium-grade jacquard shoe uppers.

Key Features:

1. Premium Quality Output:

Craft intricate and breathable shoe uppers with unmatched precision and consistency

2. Cost-Effective Production:

Experience substantial cost savings with high output capacity and efficient operation; the daily production could reach 4,000 pairs. A-ZEN RDJ6/2 type machine can reach 500rpm working speed

3. Robust Construction:

Built with durable components, ensuring stability and longevity, while minimizing maintenance costs

4. Free-style Shoe Upper Designs on Creel:

A-ZEN RDJ6/2 model double needle bar machine is equipped with an individual jacquard creel, which enables the creation of much more jacquard patterns on the shoe uppers

5. Stitch Forming Extend to GB2 and GB7:

A-ZEN RDJ6/2 can form a stitch on GB2 and GB7. Its special machine structure design makes it possible to form stitches on both front and back needle bars. Thanks to this advantage, the shoe upper fabric is stronger, and the patterns will be easier to design for the shoe upper fabric designers

6. Independent Jacquard Yarn Movement:

A-ZEN has optimized the Jacquard structure of the RDJ6/2. The two Jacquard bars can run yarns independently, allowing them to work without affecting each other’s movement.

This enables designers to fully leverage the system to create both same-direction and opposite-direction Jacquard patterns, enhancing footwear design variety and boosting product competitiveness

7. Localized After-Sales Support:

Benefit from prompt and responsive after-sales services available in multiple countries and regions

8. Comprehensive Solutions:

From prototyping to full-scale production, A-ZEN offers end-to-end support to optimize efficiency and accelerate ROI

Why Choose A-ZEN RDJ6/2 Jacquard double needle bar warp knitting machine:

The RDJ6/2 (Double needle bar jacquard warp knitting machine)  sets the industry standard for jacquard warp knitting machines, combining cutting-edge technology with A-ZEN's commitment to excellence. With its superior performance, reliability, and comprehensive support services, it empowers manufacturers to stay ahead of the competition and meet the demands of the ever-evolving footwear market

               RDJ6/2 Jacquard Double Needle Bar Machine PDF

Technical Specifications

Innovations & Advantages

• Ensures consistent output for jacquard shoe uppers at a stable working speed and high efficiency

• Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Inovance), Bearings (NSK, INA, FAG), Needle Beds and Bars (7075 Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex), and other market-tested brands

• The Knitting Elements Temperature Constant Control reduces energy consumption by up to 15% and saves start time

• Independent Jacquard yarn movement enhances design flexibility for diverse applications

• Durable Magnalium material is largely used on the needle bar, needle bed, and cam drive components.

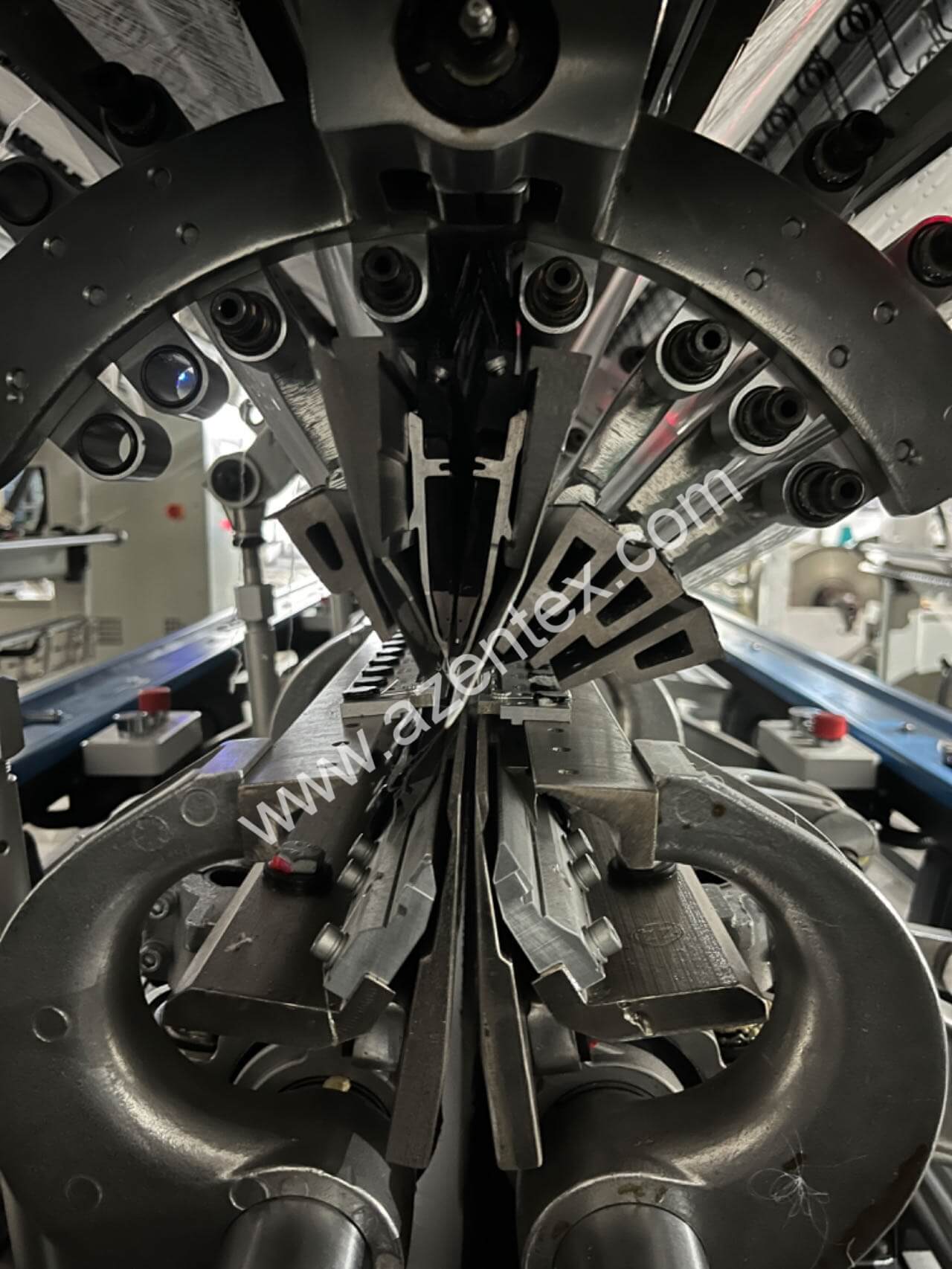

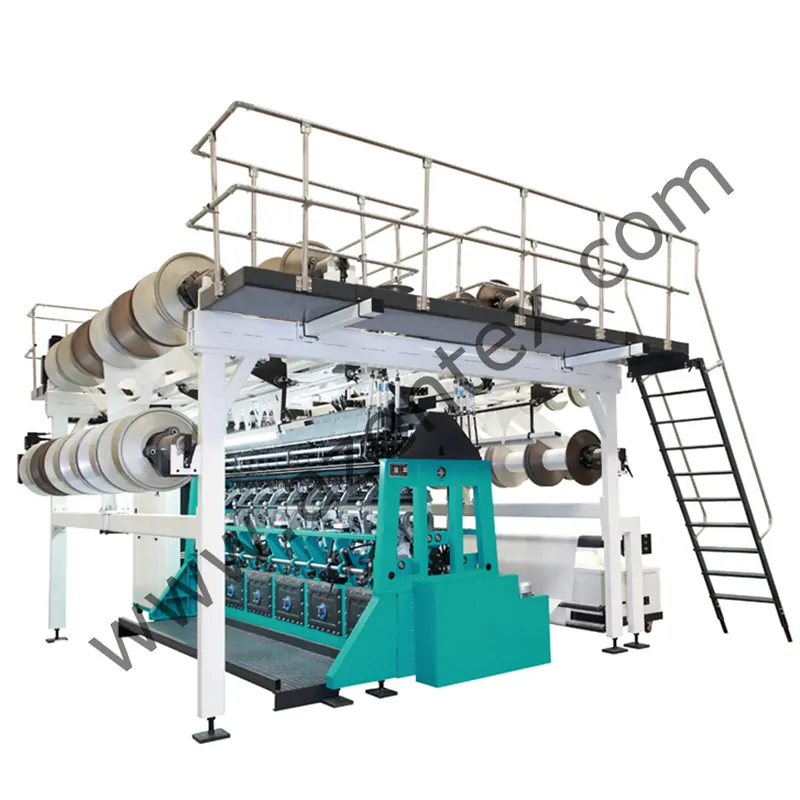

Jacquard Double Needle Bar Machine

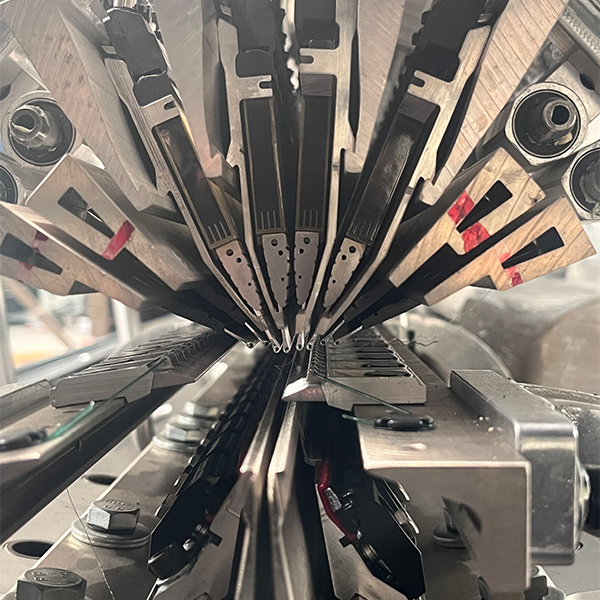

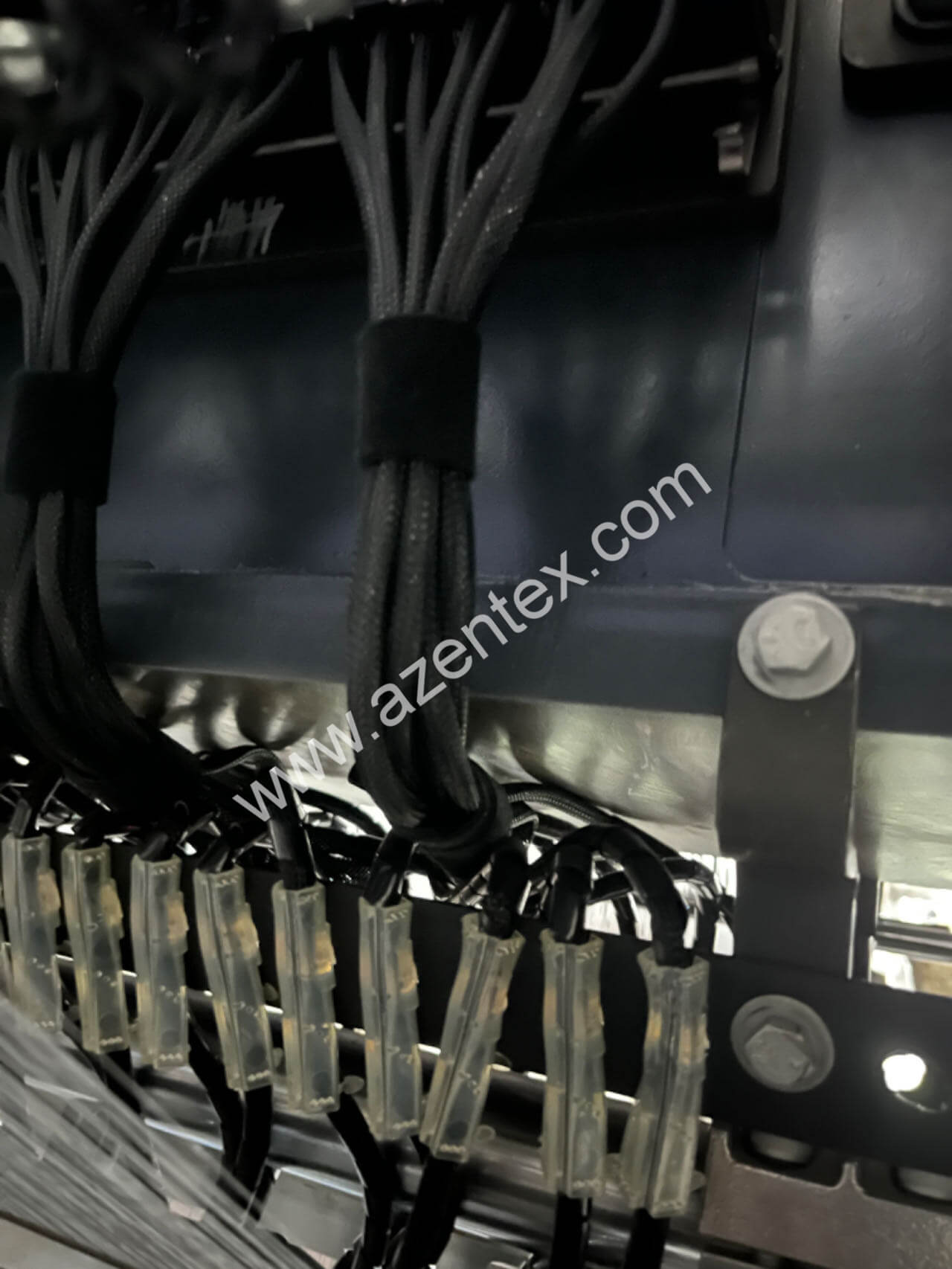

Piezo-Jacquard Needles

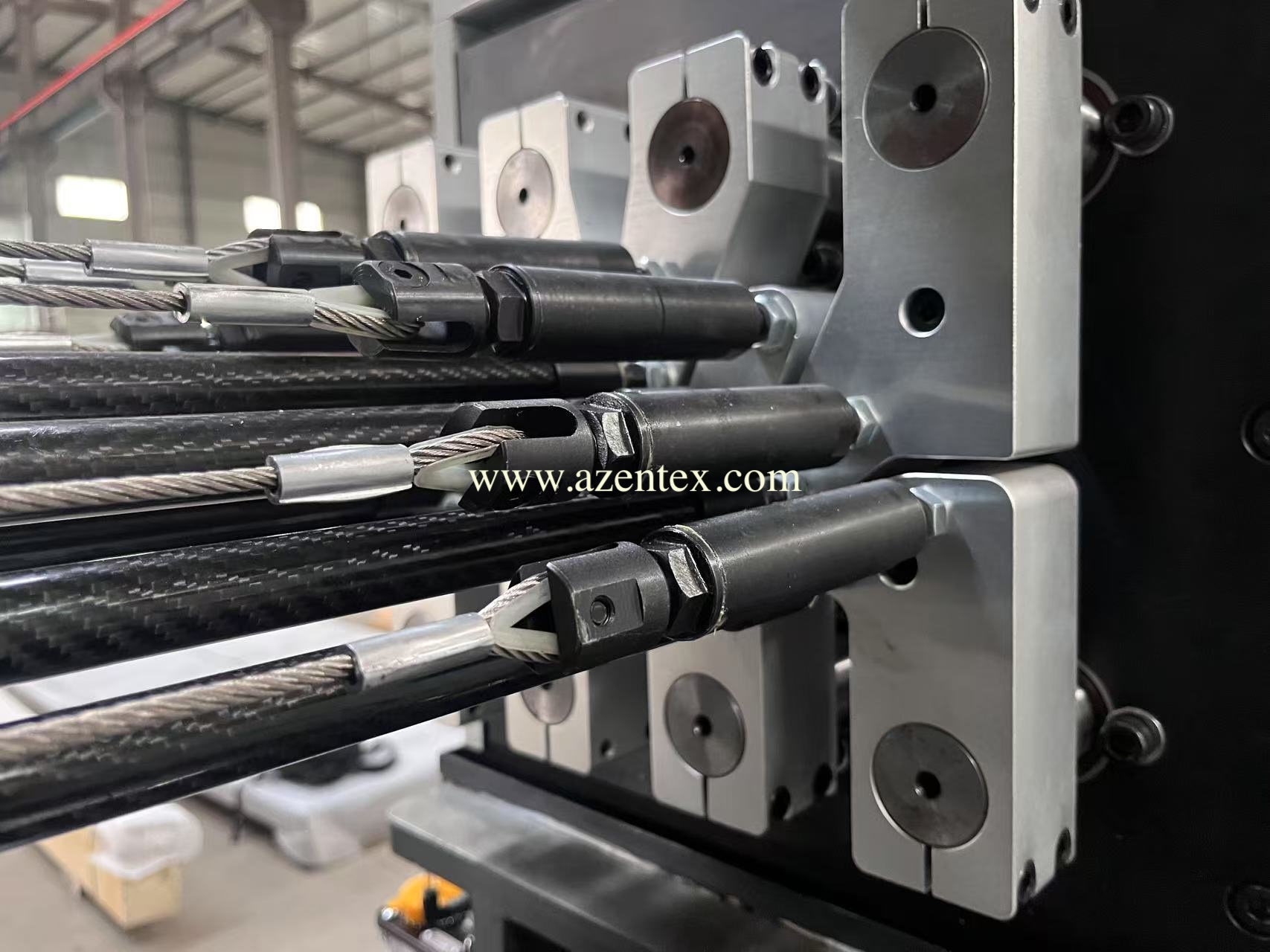

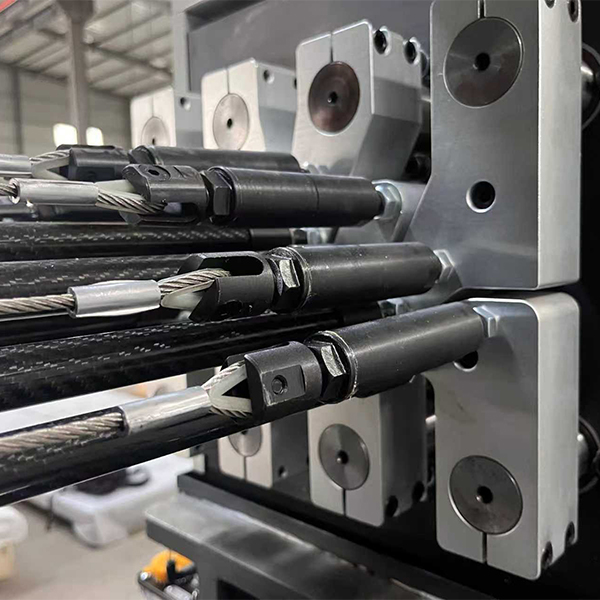

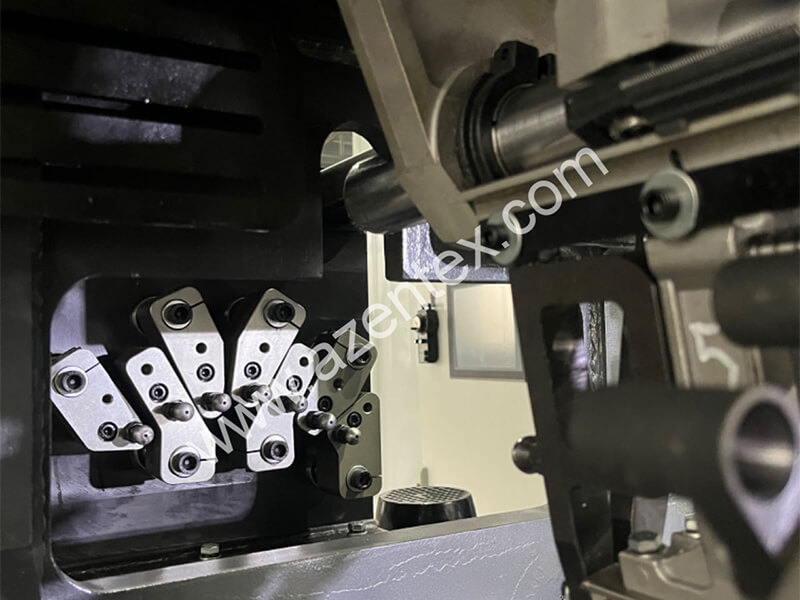

EL Drive System

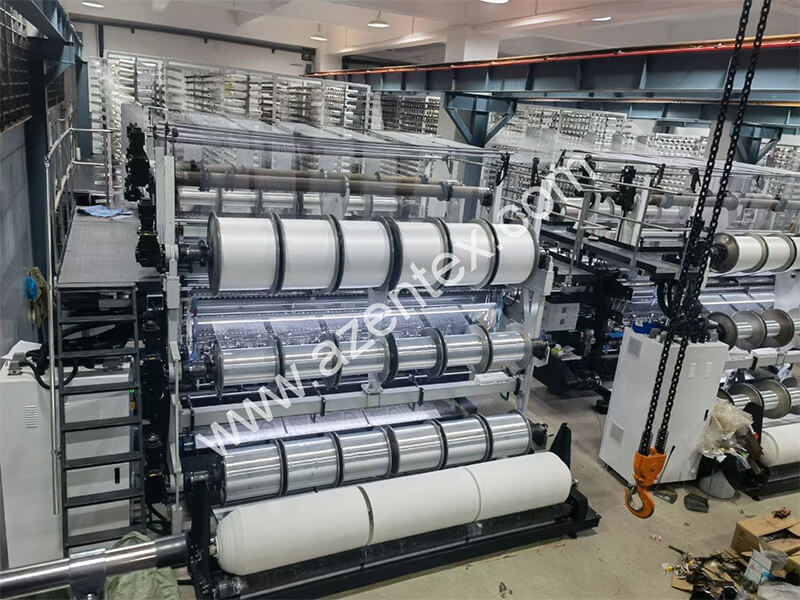

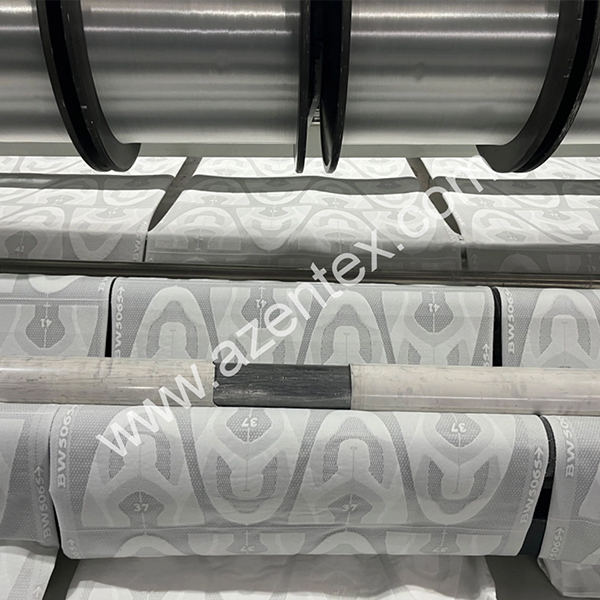

Shoe-uppers Production Unit

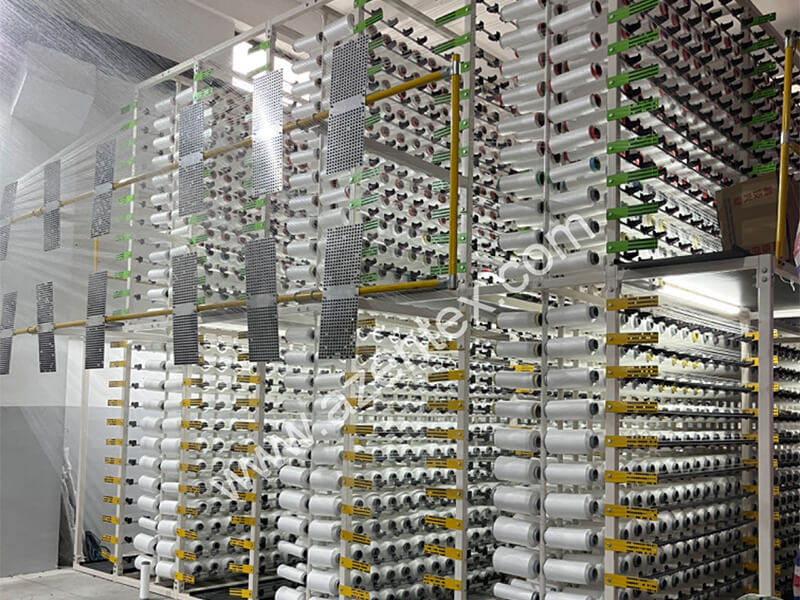

Individual Standing Jacquard Creel

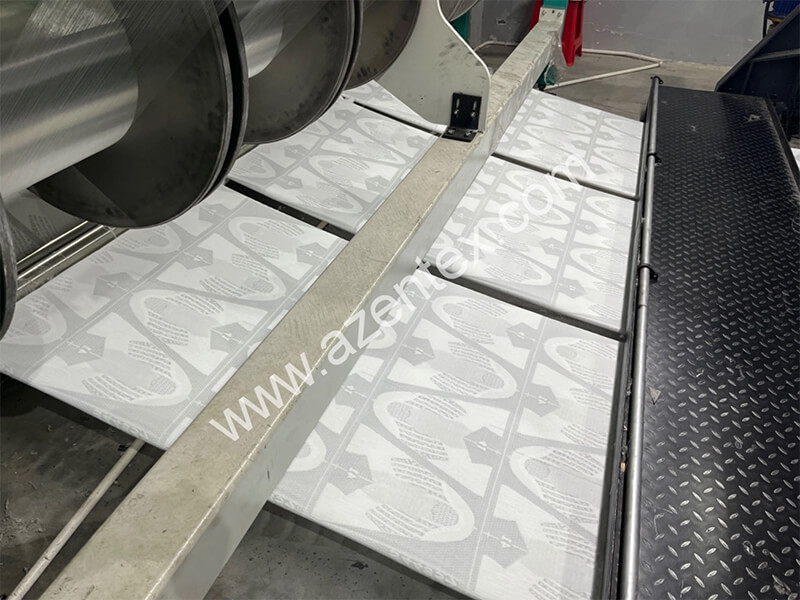

Machine Detail

Daily Production Range

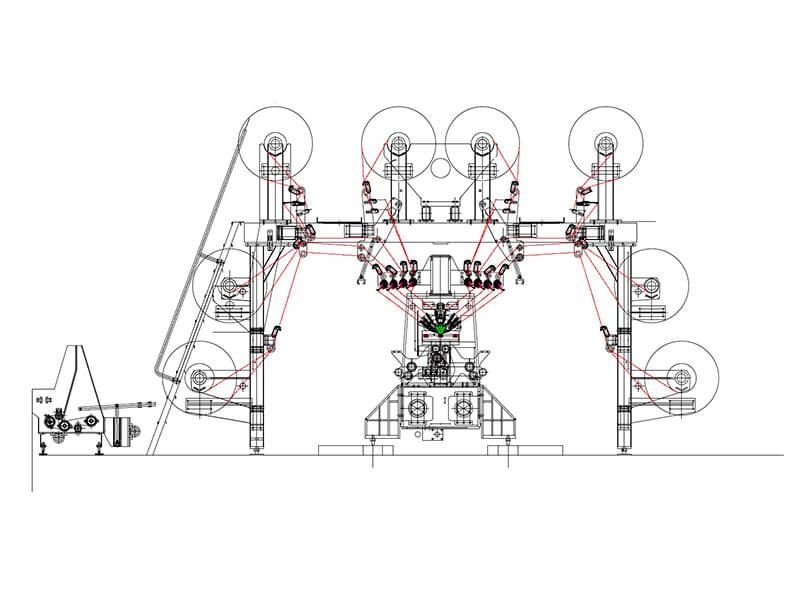

Layout of A-ZEN RDJ6/2

1. The Process of Warp-Knitted Shoe Uppers: A Comprehensive Guide

2. How to produce a superior warp-knitted shoe upper fabric?

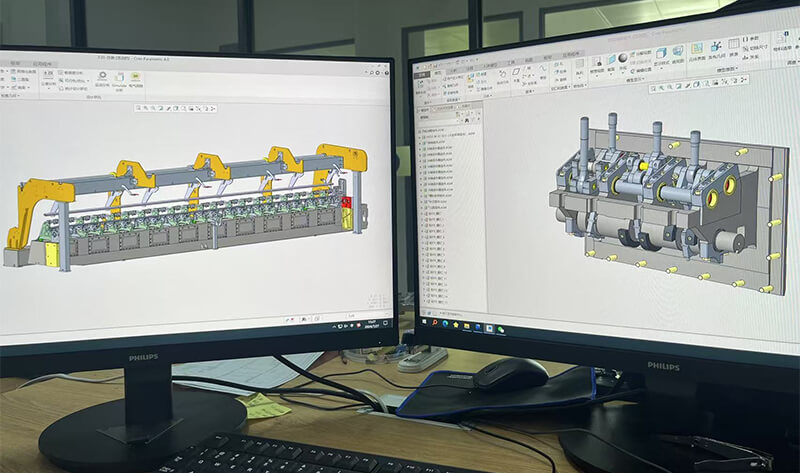

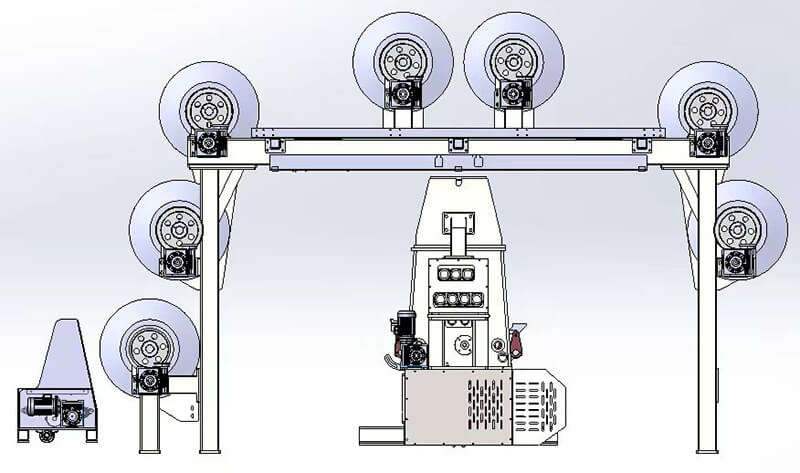

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

Original Machine Design & Custom Development

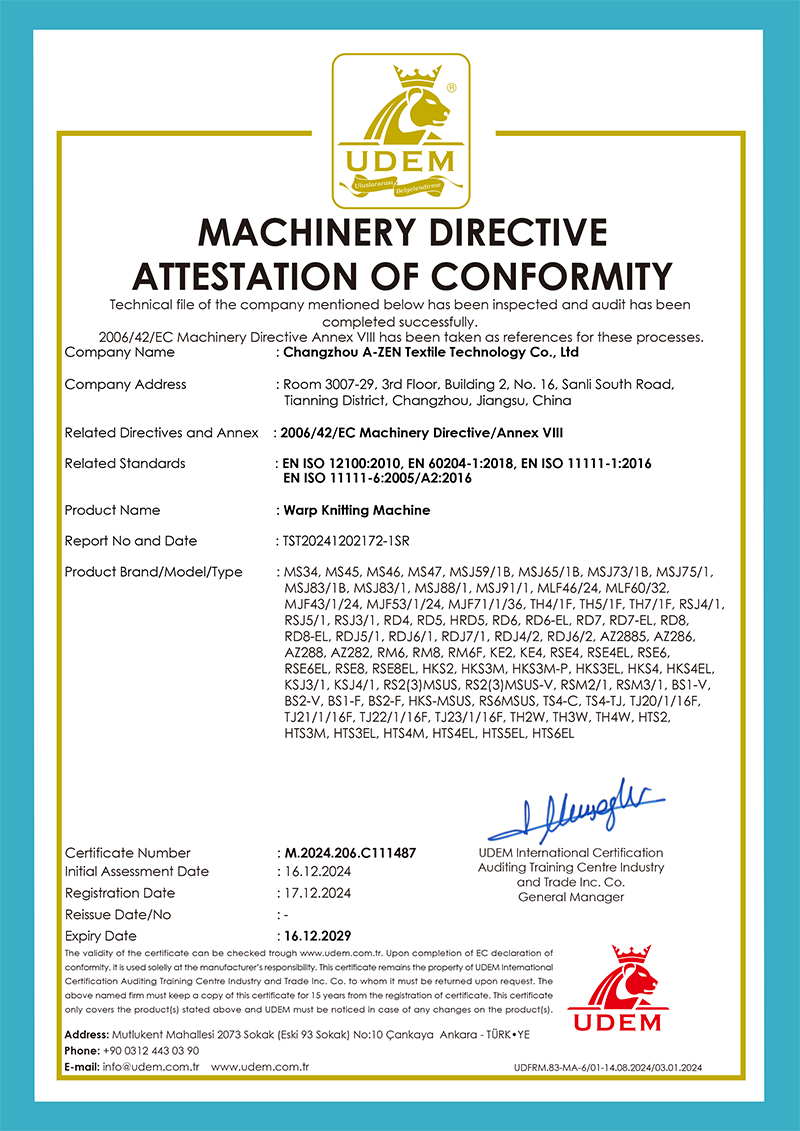

ISO-Standard Assembly and Quality Inspection

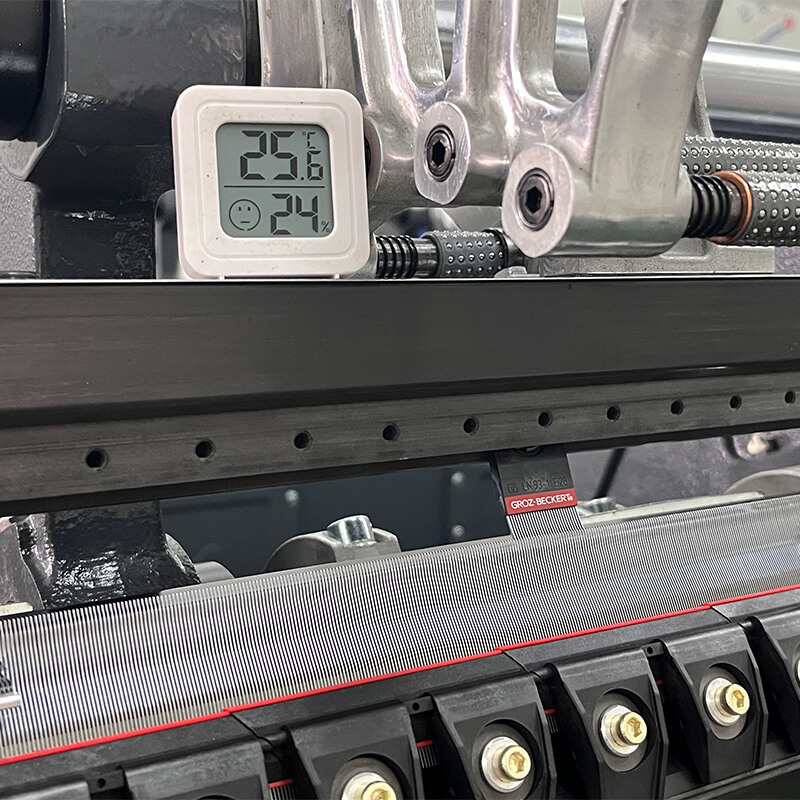

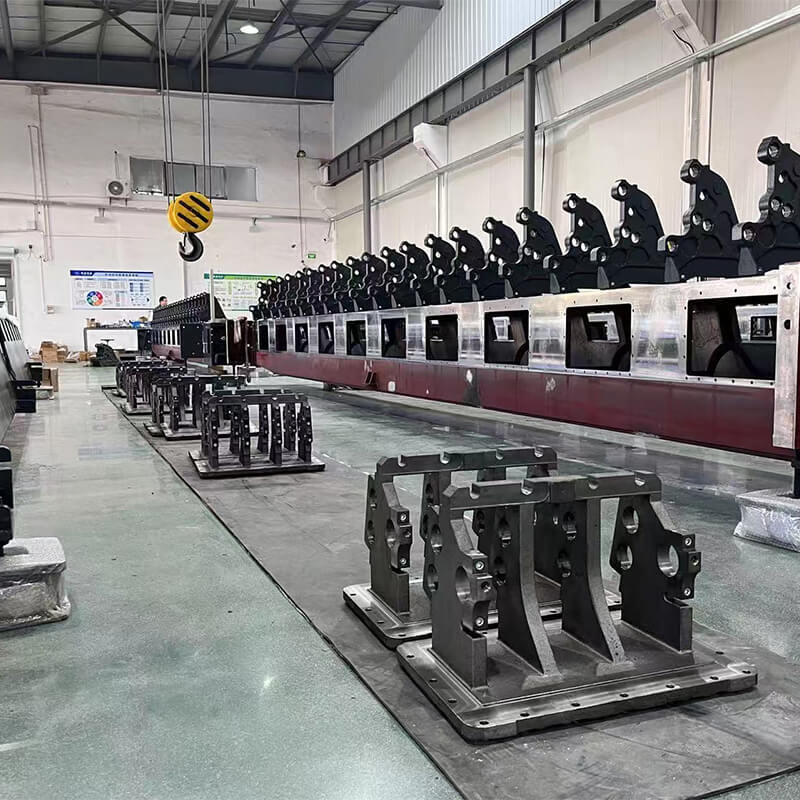

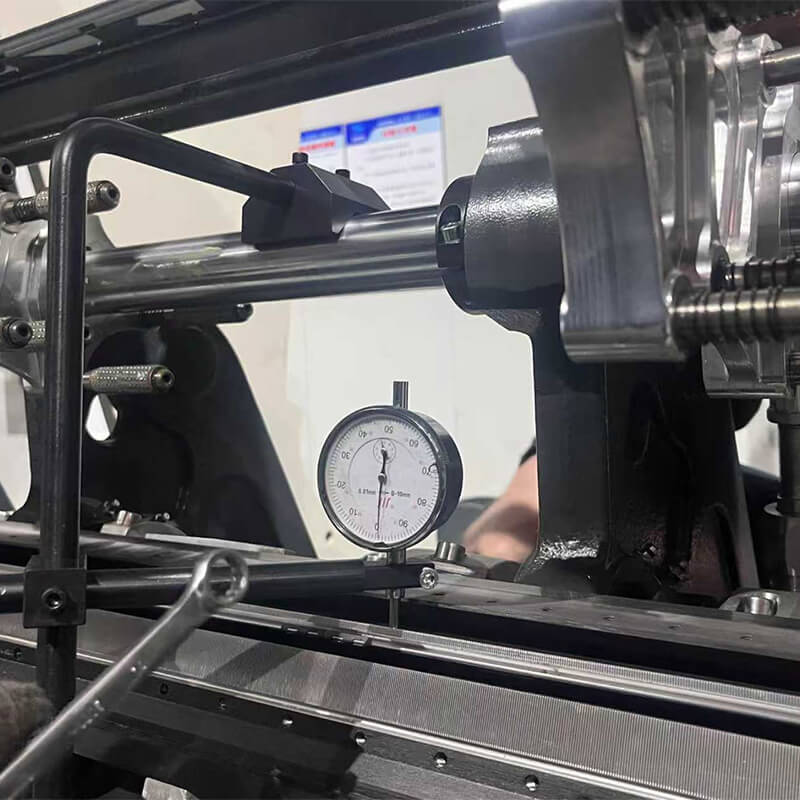

Quality Control During Assembly

Quality Control During Assembly

Quality Control During Assembly

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

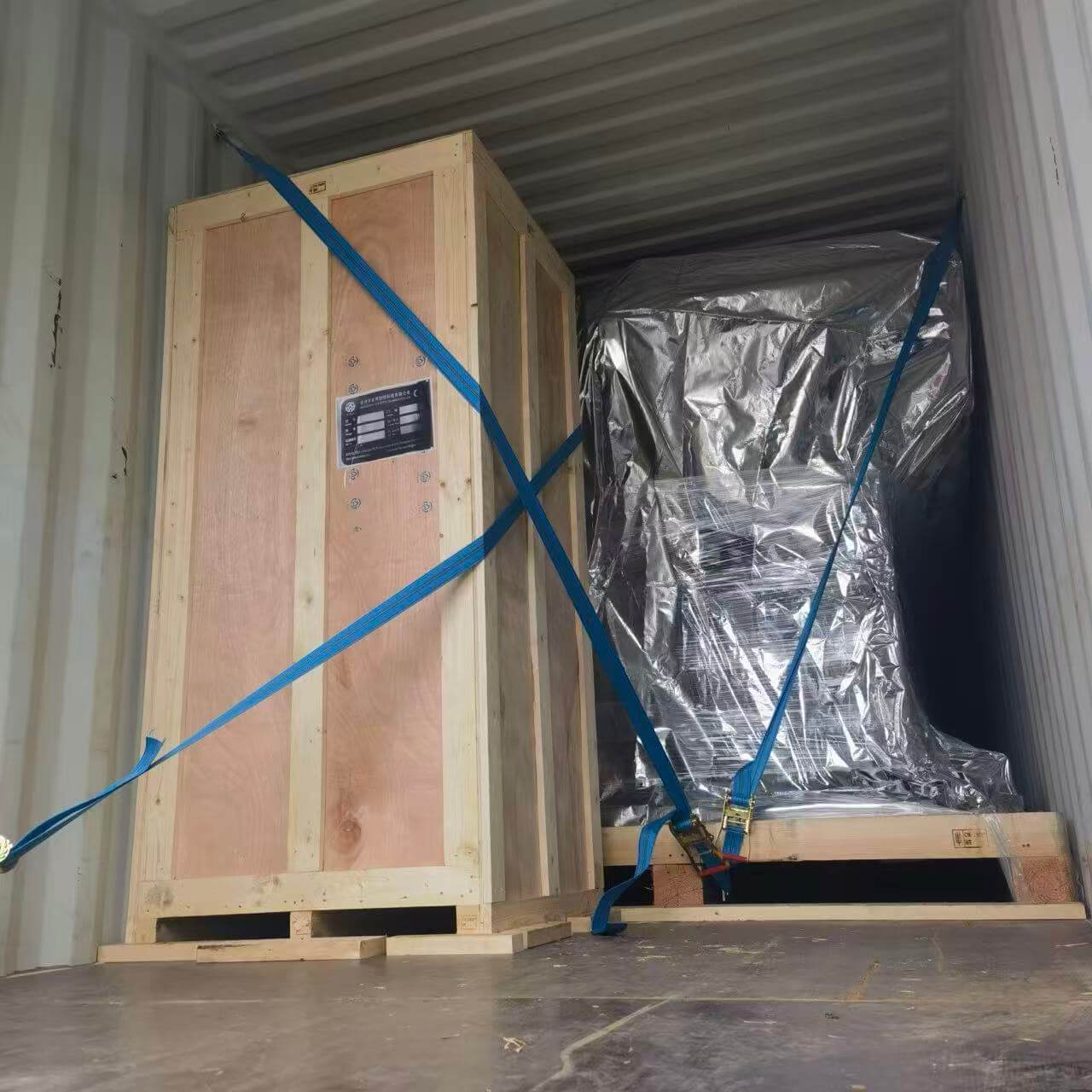

Seaworthy Package

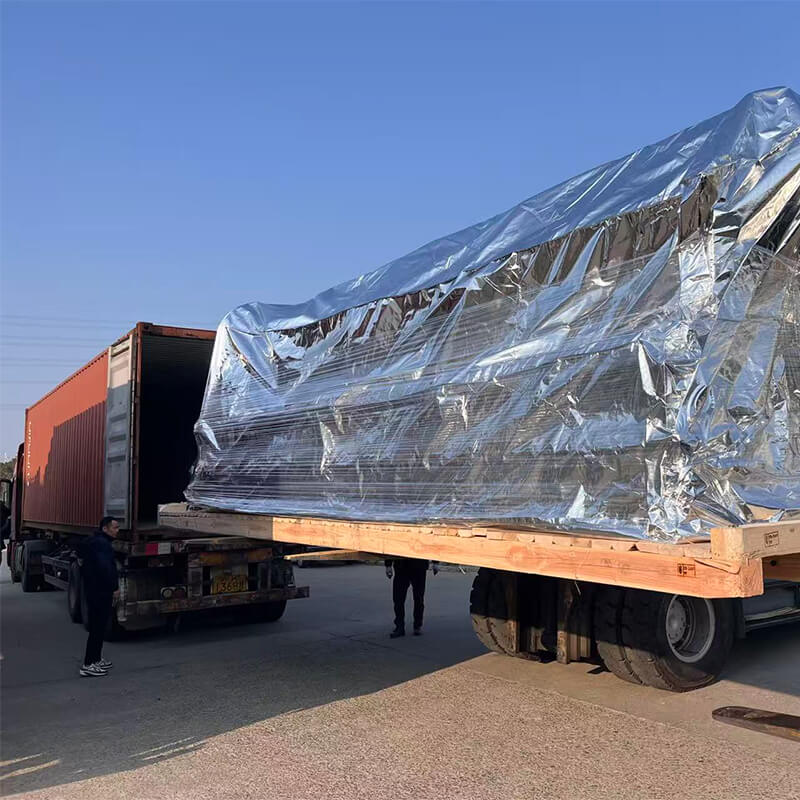

Professional Shipping

Professional Shipping

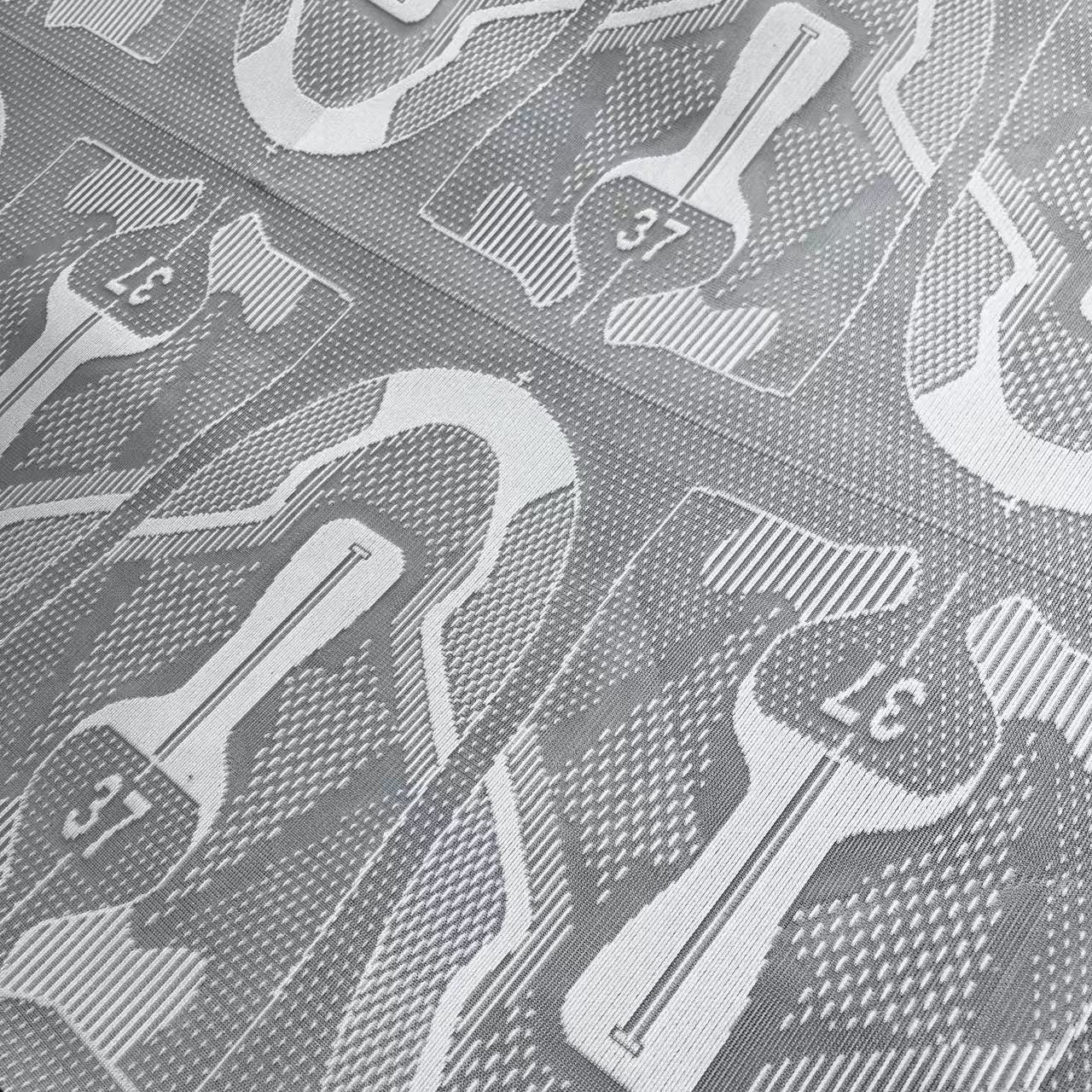

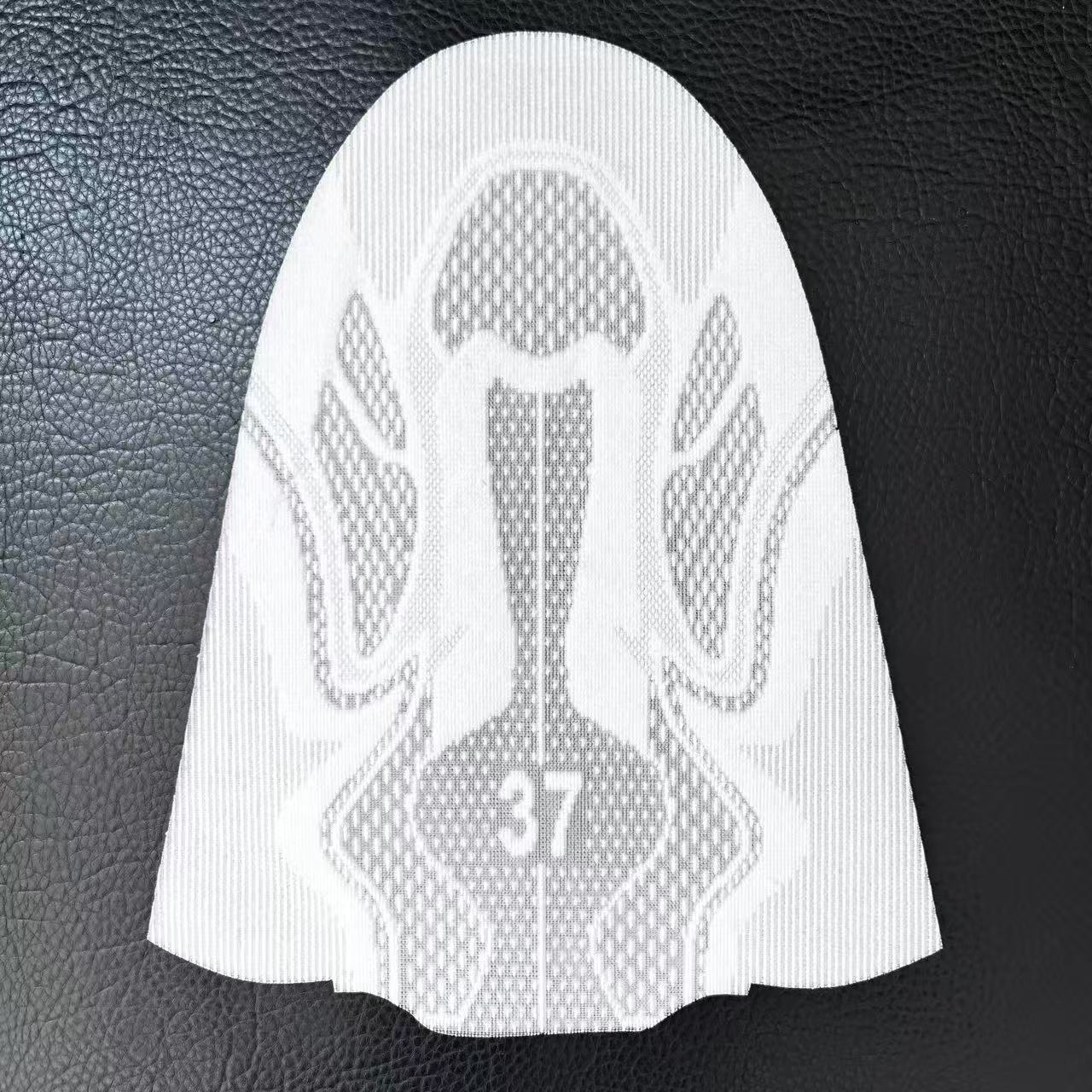

As a high-end jacquard double-needle bar warp knitting machine, the RDJ6/2 is specially engineered for jacquard patterned shoe upper fabrics. It delivers high output, diversified patterns and compact fabric texture. Two jacquard yarn feeding systems are optional: Beam and Individual creel, which fully unlock the strengths of EL technology and maximize designers’ creative potential.

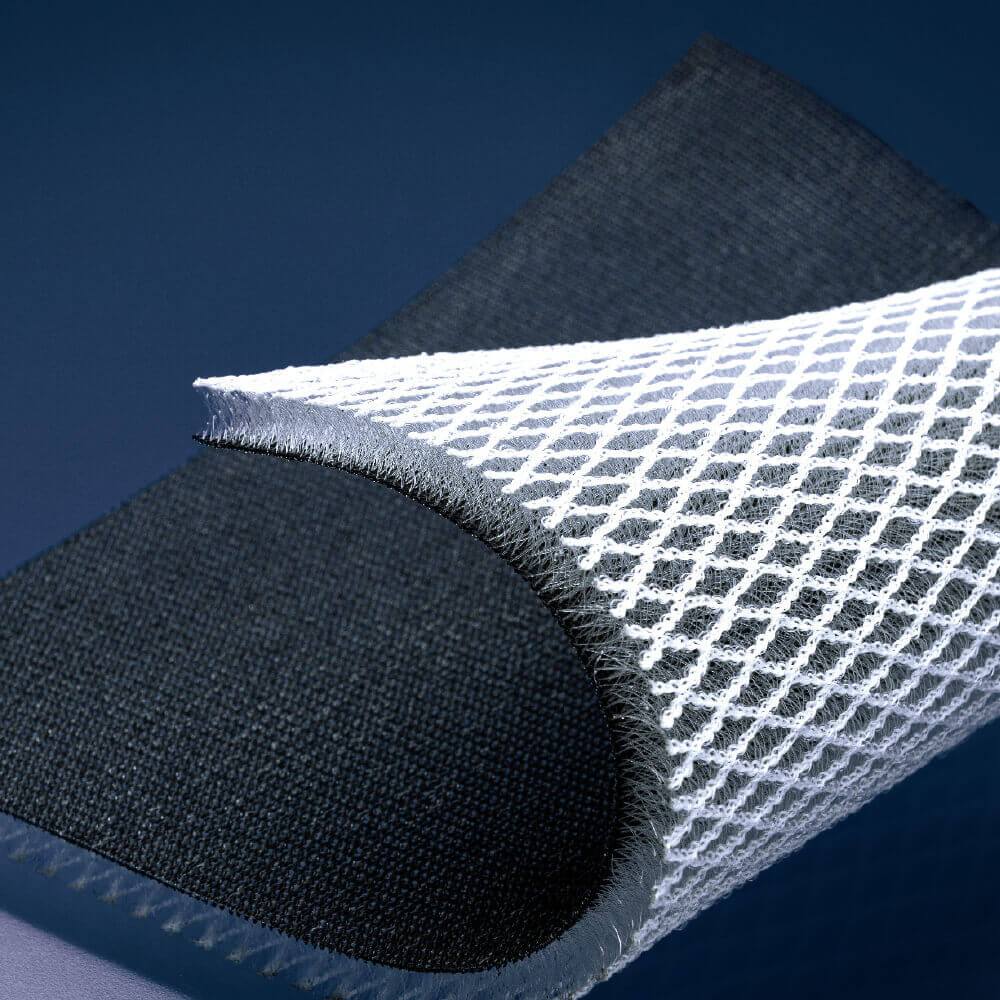

The RD7EL is a high-speed standard double-needle bar machine, the optimal model for mass production of regular spacer fabrics. Manufactured by A-ZEN, the RD7EL runs stably at a working speed of 950 RPM, with a daily output of nearly 500 KG of common spacer fabrics, making it the top choice for customers prioritizing high productivity. Unlike the RDJ6/2, the RD7EL only supports basic jacquard via EL system to produce spacer fabrics with simple customized patterns.

Q: Are you a double-needle bar sports net warp knitting machine manufacturer?

A: A-ZEN has been established as a trading company since we already have a factory mainly producing warp knitting machines and needle beds.

Q: How is your sports net double needle bar machine?

A: 1. We have an experienced installation and R&D team for this type of machine. 2. We adopt branded electrical parts and imported mechanical parts to ensure their basic quality condition. 3. We test each machine before delivery. 4. We collect feedback from our machine adjustment team and improve our technology accordingly. So, with years of market testing, our machine quality is good and stable.

Q: Do you offer local service?

A: We provide local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran so far, and we will expand our service teams in more countries shortly. But meanwhile, we have a detailed machine Operation Manual and online technical support. Most of our customers can finish machine adjustment efficiently.
