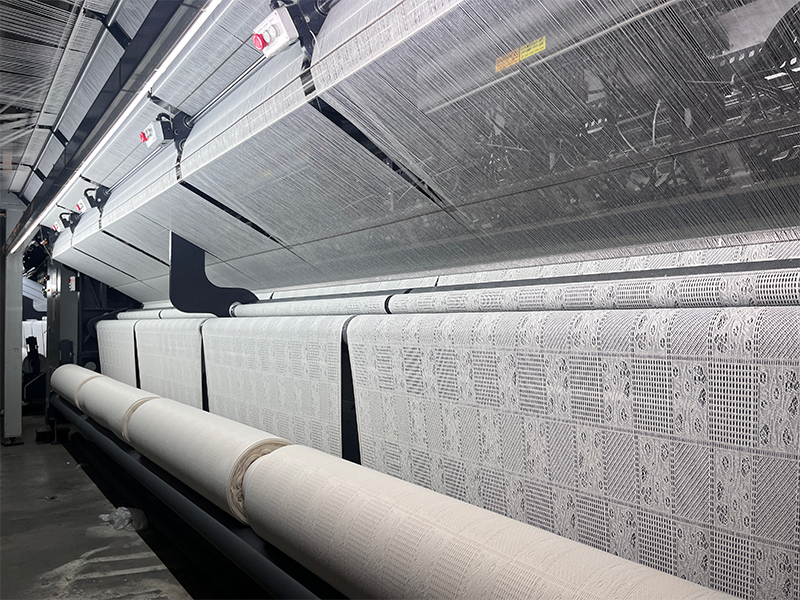

Blackout Curtain Warp Knitting Machine

Jacquard Curtain Warp Knitting Machine refers to the raschel warp knitting machines with piezo-jacquard system and fall plate mechanism, which is specialized to produce warp-knitted curtains. TH-7/1F warp knitting textile machine is specialized to produce warp-knitted blackout curtains with jacquard patterns. The blackout curtain is a newly-developed curtain, which is washable, functional, and economical.

Model:
TH-7/1F
Brand:
A-ZEN
Width:
242"
Gauge:
E18

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN TH-7/1F Jacquard Curtain Warp Knitting Machine

Jacquard Curtain warp knitting machine refers to the raschel warp knitting machines with piezo-jacquard system and fall plate mechanism.

The curtain produced from the Jacquard Curtain Machine is characterized by its various designs, obvious patterns and delicate surface.

As a leading jacquard warp knitting textile machine producer, A-ZEN Jacquard Curtain Machine including TH-4/1F, TH-5/1F, and TH-7/1F three models.

TH-7/1F raschel lace warp knitting machine is specialized to produce warp-knitted blackout curtains with jacquard patterns. The blackout curtain is a newly-developed curtain, which is washable, functional, and economical.

With an effective shading effect, blackout curtain has become market darling since it enters into the market. As an incomparable jacquard-patterned curtain with functional advantage, its machine TH-7/1F warp knittng textile machine is gaining a hot welcome from the markets.

PDF Documentation for TH-7/1F Jacquard Curtain Machine

PDF Icon TH-7/1F Jacquard Curtain Machine PDF

Technical Details of TH-7/1F Jacquard Curtain Machine

Technical Specifications

Working Speed	20-500rpm (depends on yarn and designs)
Working Width	130”; 200”;242”
Gauge	E18; E24
Bars Arrangement	1 Separate Jacquard Bar, 1 Fall Plate, and 6 Ground Bars;
Pattern Drive System	Full Bars EL Drive
Yarn Let-off Device	EBC Let-off
Fabric Take-up Device	Electronical take-up device
Beams	Φ30”*21"
Main Power	11KW

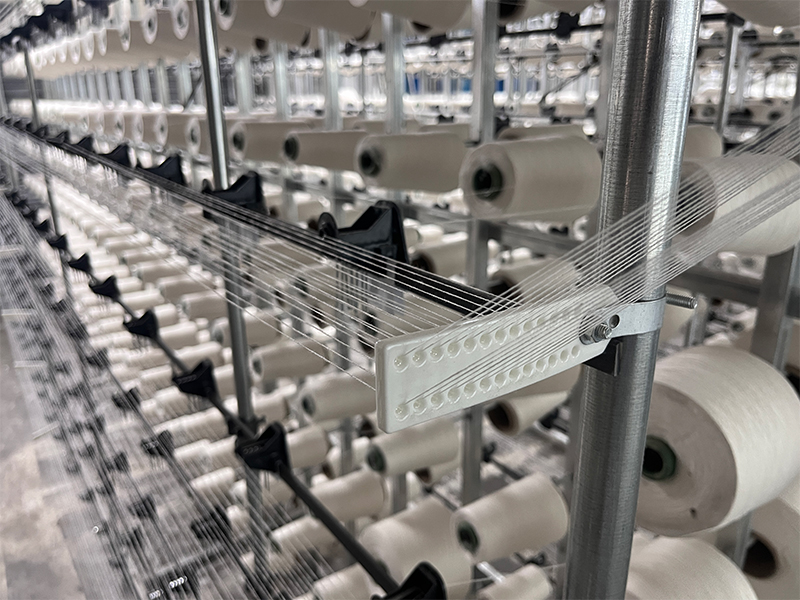

Jacquard Creel	Chinese Type Creel, German Type Creel (Optional)

Innovations & Advantages

Ensures consistent output for 3D mesh textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Needle Beds and Bars (Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex).
The EBC yarn let-off system reduces energy consumption by up to 15%.
Mitsubishi EL drives ensure accurate 3D mesh patterns for diverse applications.
Magnalium needle beds and NSK bearings enhance machine longevity.

Smart Curtain Machine

Lace Curtain Machine

Blackout Curtain Warp Knitting Machine

Applications of TH-7/1F Jacquard Curtain Fabrics

Blackout Curtain

Lace Curtain

Smart Vertical Curtain

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

Sustainable Textile Production with TH-7/1F Jacquard Curtain Machine

The TH-7/1F’s energy-efficient design reduces power consumption by up to 15%, and its compatibility with eco-friendly yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About TH-7/1F Jacquard Curtain Machine

Q: You are a trading company or a manufacturer?

A: We are a manufacturer since 2012, and we have our own trading company in 2017, the brand of which is A-ZEN, which is specialized in importing and exporting services.

Q: Do you offer local service?

A: We provide local service in India, Turkey, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries in the near future.

Q: How do you provide service if Chinese engineers can not come installation

A: Before machine delivery, we have an in-house test process, to make sure the machine performs perfectly. After the machine arrives, we provide an in-time online guide to support our customers finish the machine installation.

Q: How do you ensure your machine quality

A: Firstly, we produce and provide lots of machines to the market, and our machines' lifespan and quality ensured by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechanical and electrical parts are durable.

Besides, we have regular service to customers, to check the quality of our machines and remind customers of maintenance, so our customers could run machine always in stable performance.
