Jacquard Raschel Machine

Jacquard Raschel Machine refers to the raschel warp knitting machines with piezo-jacquard system and fall plate mechanism. Jacquard Raschel Machine is widely used for producing home textiles such as net curtains, table covers, and outwear garments, for example, the lady outwears dress and hijab scarf textiles.

Model:
TH-4/1F
Brand:
A-ZEN
Width:
134", 200", 242"
Gauge:
E18, E24

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN TH-4/1F Jacquard Raschel Machine

Jacquard Raschel Machine refers to the raschel warp knitting machines with a piezo-jacquard system and fallTH4-1F warp knitting machine plate mechanism. Jacquard Raschel Machine is widely used for producing home textiles such as net curtains, lace curtains, smart curtains, vertical curtains, table covers, and outwear garments, for example, the lady outwears dress and hijab scarf textiles. Besides the traditional fabric applications, the jacquard raschel fabrics now also appear in shoe uppers, and fashion galas.

The textile produced from the Jacquard Raschel Warp Knitting Machine is characterized by its various patterns and delicate surface.

As a leading jacquard raschel machine producer, A-ZEN Jacquard Raschel Machine includes TH-4/1F, TH-5/1F, and TH-7/1F three models. TH-5/1F warp knitting machine is for producing smart vertical blind curtain fabrics.

PDF Documentation for TH-4/1F Jacquard Raschel Machine

PDF Icon TH-4/1F Jacquard Raschel Machine PDF

Technical Details of TH-4/1F Jacquard Raschel Machine

Technical Specifications

As the most successful jacquard raschel machine model, TH-4/1F has a high reputation for its stable working performance and strong pattern-knitted function.

Working Speed	20-650rpm (depends on yarn and designs);
Working Width	134", 200", 242";
Gauge	18/24;
Bars Arrangement	1 Separate Jacquard Bar, 1 Fall Plate, and 3 Ground Bars;
Pattern Drive System	Full Bars EL Drive;
Yarn Let-off Device	EBC Let-off;
Fabric Take-up Device	Electronic take-up device;
Beams	Φ30”*21";
Main Power	5.5KW(134"), 7.5KW(200"), 11KW(242");
Jacquard Creel	Chinese Type Creel, German Type Creel (Optional).

Innovations & Advantages

Ensures consistent output for 3D mesh textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Needle Beds and Bars (Magnalium Material), Electrical Elements (Schneider, Siemens, Omron, INVT), Take-up Belt (Bobotex).
The EBC yarn let-off system reduces energy consumption by up to 15%.
Mitsubishi EL drives ensure accurate 3D mesh patterns for diverse applications.
Magnalium needle beds and NSK bearings enhance machine longevity.

Lace Curtain Machine

Warp Knitting Curtain Machine

Jacquard Raschel Machine

Lace Curtain Production

Applications of TH-4/1F Jacquard Raschel Fabrics

Lace Curtain

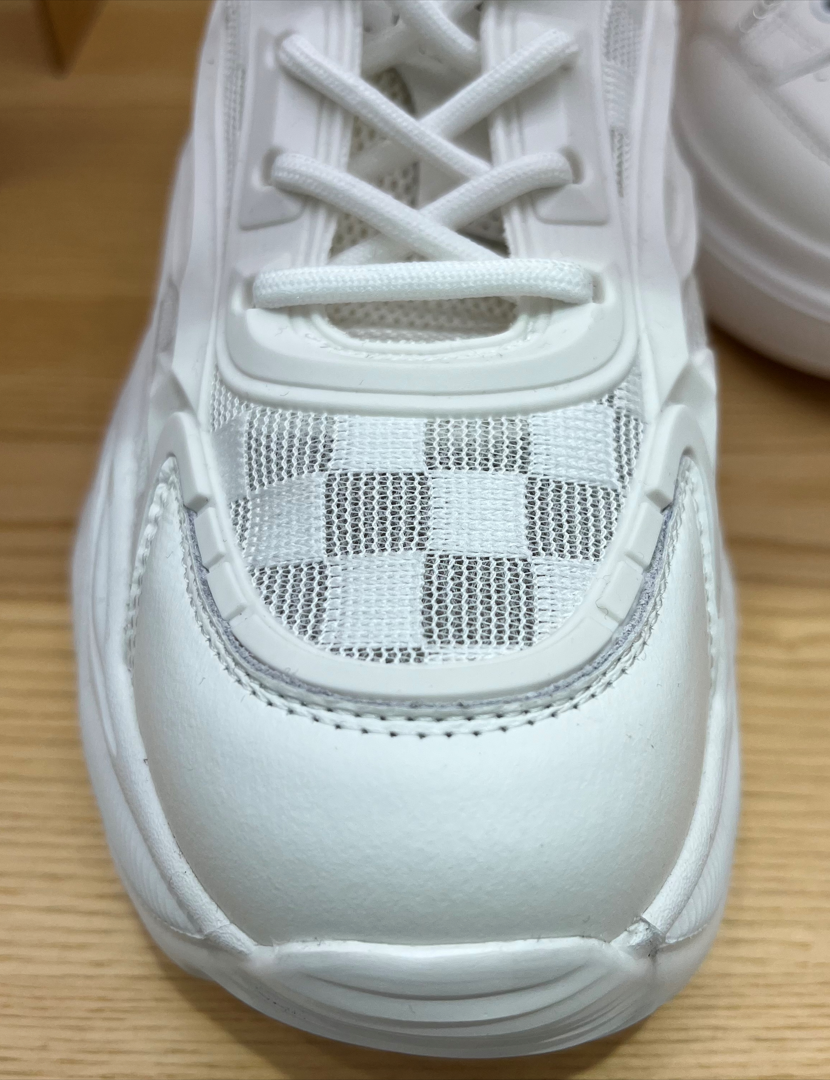

Lace Shoe Upper

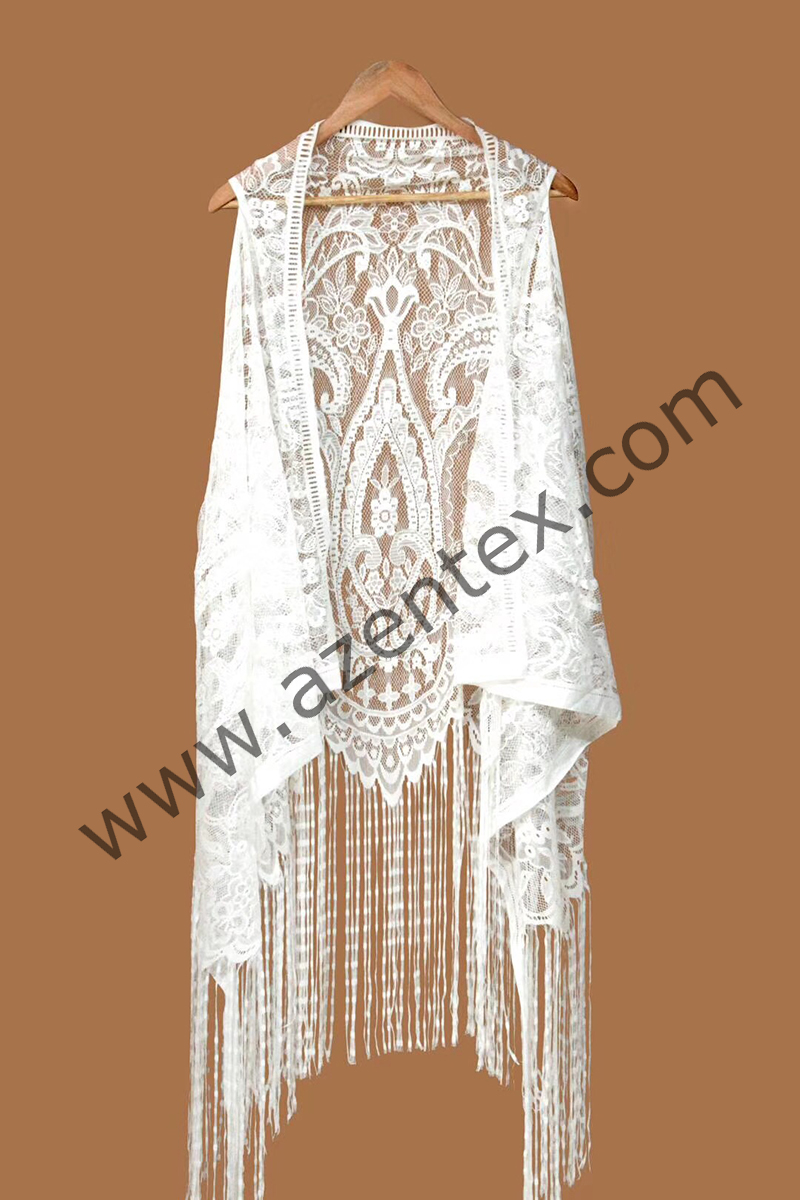

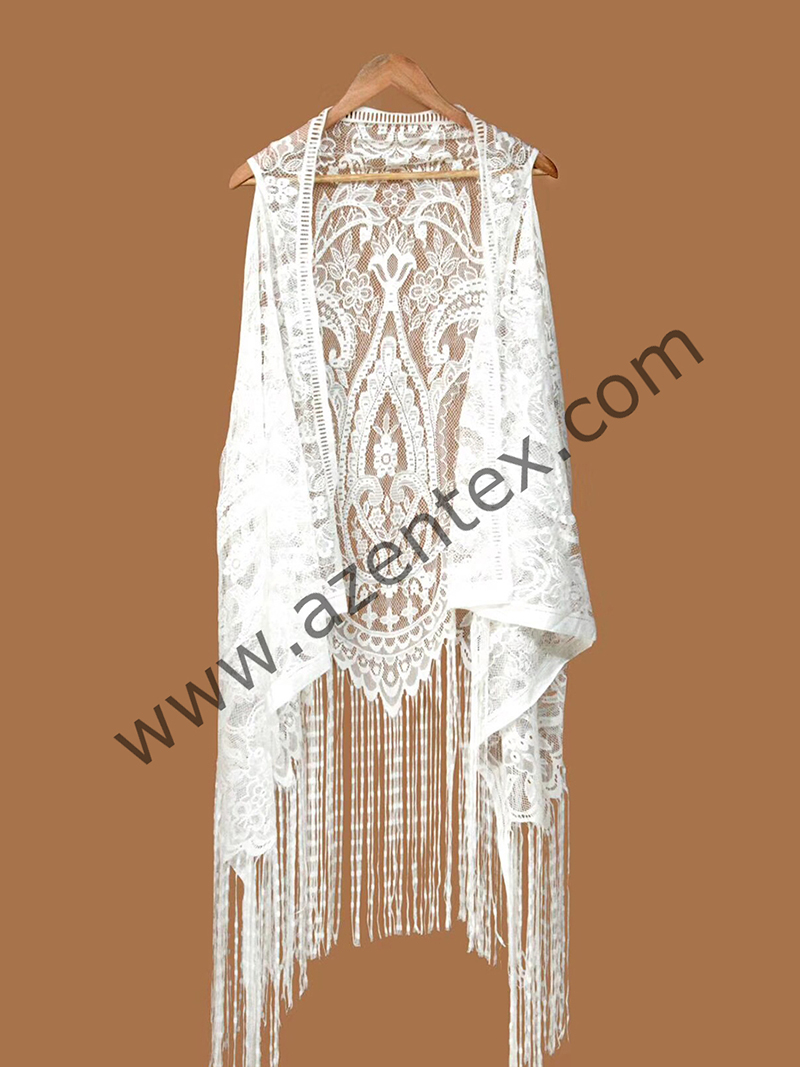

Lace Cloth
