Mother Yarn Split Warping Machine

A-ZEN Textile is a warping machine manufacturer. we provide direct warping machines, split warping machines, and spandex warping machines to the market. The split warping machine also called the mother yarn warping machine is mainly used to split mother yarn into monofilament yarn. Most customers choose to use the split warping machine together with their double needle bar raschel machine, Tricot machine.
  • AZ328

  • A-ZEN

  • 720 ends; 700 ends, 640 ends, or customized

Availability:
Quantity:

Split Warping Machine Overview


A-ZEN Textile is a warping machine manufacturer. we provide direct warping machines, split warping machines, and spandex warping machines to the market.  The split warping machine also called the mother yarn warping machine is mainly used to split mother yarn into monofilament yarn. Most customers choose to use this warping machine together with their double needle bar raschel machine, Tricot machine.

Our split warping machine uses INVT electronica parts and high-quality mechanical spare parts. Each machine before delivery will be under strict test. Based on branded components and developed technical, most customers can finish the installation process with our on-line support. That saves most costs for our customers.

Split Warping Machine Description


warping machine is an equippment used for beam warping. With years’experience and on-going technology development, A-ZEN split warping machine has become a fair smart one with many advantages combined, such as easier operation system, intelligent camera detector, auto-saved data, durable PLC system, strong reed needles, and highly-quality measuring speed rollers.

Main Features

  1. The whole machine adopts asynchronous servo control. The tension is precisely controlled by the computer which greatly reduces energy consumption.

  2. The double-group tension roller adopts a double pneumatic control structure. This kind of structure has many advantages. Like precise control, separate structure design, convenient installation, and machine stability.

  3. The surface of the tension roller is treated with special material, which is more durable with long use life. Meanwhile, this high-quality tension roller increases the friction to ensure the yarn’s smooth running.

  4.  he tension of the mother yarn can be automatically repaired and adjusted by the computer according to the warping data, which ensures the consistency of the bobbin tension from large to small during work.

    The power failure stop function adopts a large-capacity battery, which can effectively ensure the normal shutdown of the equipment when the equipment is suddenly powered off.

    Main technical data:



Mother yarns

8~16f(polyester,polyamide)

Beam size

Φ535mmx535mm(21" x21")

Φ762mmx535mm(30" x21")

Φ535mmx1066mm(21" x42")

Φ762mmx1066mm(30" x42")

Warping line speed

80~1000m/min

Bobbin size

Φ90*380,Φ120*420,Φ125*420

Creel qty

560,720,780 or customized

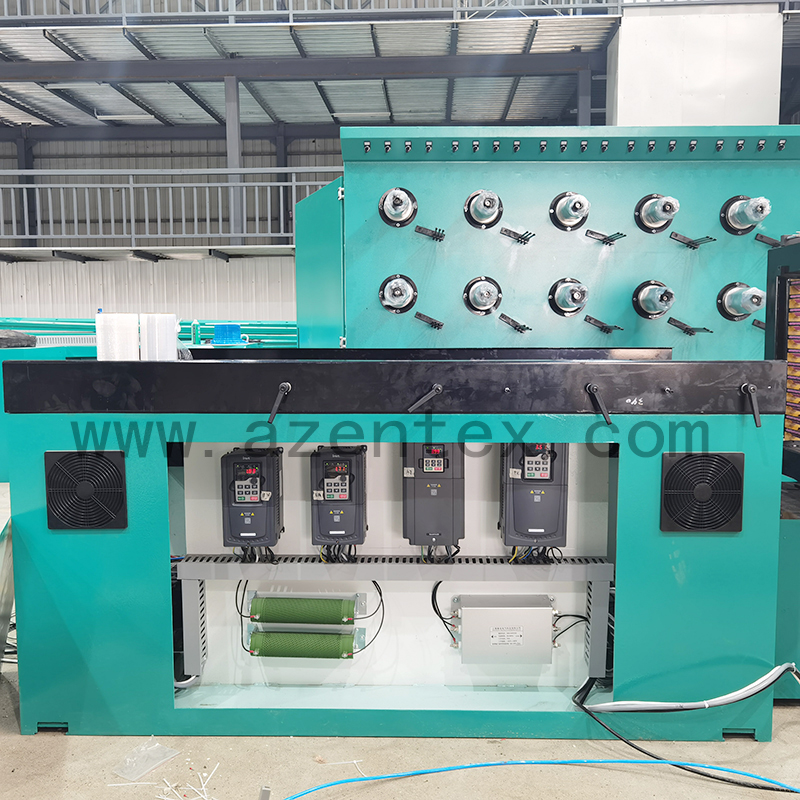

Warping machine installtion images

mother yarn split warping machine mother yarn warping machine creel

split warping machine components

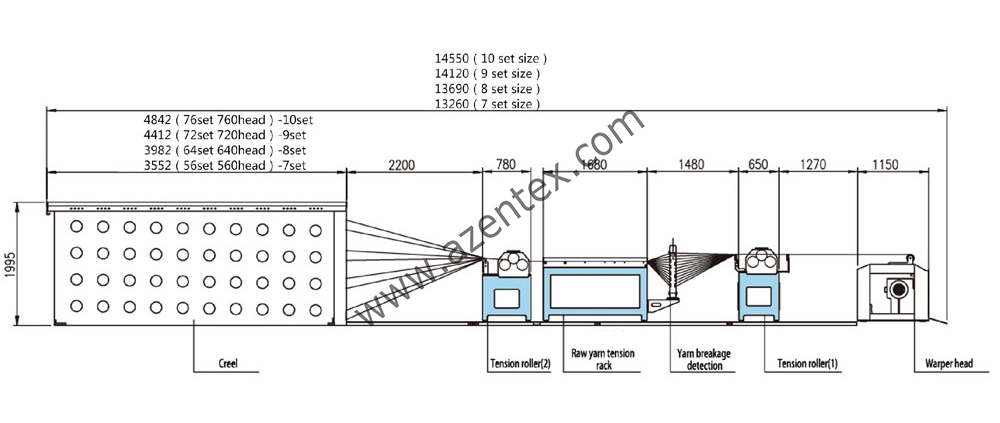

split warping machine structions

Packaging & Shipping


split warping machine

Warping Machine Head

split warping machine delivery

Warping Machine Delivery

Our Services


  • Local service team in Turkey, Egypt, India, Pakistan, Indonesia

  • In-time online service

  • Detailed operation manul

  • Machine in-house test before delivery

Machine Running Vedio

Company Information


warping knitting machine manufacture

Manufacturing Factories:

We have four workshops, two of them are warp knitting machines and warping machines workshops, another two are fabric production mill and spare parts manufacture workshop separately.

Most of our newly developed machines will be used in our fabric knitting factory for a profound test, after which, we will promote into the market.

Spare parts such as compound needle bed, tongue needle bed, needle guide bar, sinker bed, and latch needle bed are produced in our CNC machines, the bars or beds used on Chinese and German warp knitting machines.




exhibition booth Global Exhibition:

We attend professional textile machinery exhibitions worldwide, such as ITMA, ITM, ITME, and many others. During the exhibition, we not only display our newly developed technology, but also offer economical products to our customers.

It is also a good time to collect customers' feedback and new demand, so that we could make better machines for them.

Commuication and Cooperation is our theme to participate in all exhibitions.



warp knitting machine training Customer Training

Technical support plays an extremely role in warp knitting machine services. We offer different forms of training, including professional manul book, online guide, video album, and on-site training.

So far, we have offered on-site training in more than 10 countries, and build up our own local service teams in Turkey, India, Pakistan, Indoneisa, Iran, and Egypt.

Our in-time & professional technical support gains a highly reputation in markets.

FAQ



Q:  You are a warping machine manufacturer

A: A-ZEN is established to provide warp knitting machine and warping machines to the internaitonal market. we have own manufacturer workshop.

Q: Do you offer local service for your yarn warping machine?

A: we provide local service in India, Turkey, Egypt, Indonesia, Pakistan and Iran so far, and we will enlarge our service teams in more countries in the near future. meanwhile, we provide on-line service to our customers to support them to finish the machine installation and adjustment.

Q: How is your split warping machine quality.

A: Our warping machine quality is stable and the split warping machine is satisfied by our customers for its excellent quality and best working performance. we ensure our mother yarn split warping machine quality from three sides

 Firstly, we produce and provide lots of machines to the market, and our machines' lifespan and quality ensured by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechnical and electrical part are durable.

Besides, we have reqularl service to customers, to check our machines quality and remind customers of maintenance, so our customers could run machine always in a stable performance
