Warp-knitted Terry Machine

Microfiber Terry Towel Warp Knitting machine produces microfiber towel products, such as bathrobes, beach towels, cleaning microfiber towels, kitchen towels, and others.

Compared with the traditional loom terry machines, the warp knitting terry machine has a much higher productivity, and the process is more environmentally friendly and resource-efficient.
TS4-EL is equipped with an EL drive system, which is available to produce zig-zag pattern terry towels.

Model:
TS4-EL
Brand:
A-ZEN
Width:
186", 218", 280"
Gauge:
E24

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN TS4-EL Warp-Knitted Terry Machine

TS4-EL terry towel machine is for producing microfiber and cotton terry towel textiles.

Unlike TS4-C, the TS4-EL terry towel machine is capable of producing the simple-patterned or zigzag microfiber terry towel cloth.

The application of TS4-EL towel textiles, including cleaning terry towels, bathrobes, sea beach towels, kitchen cleaning terry cloths, and other towels.

PES/PS Yarn Used on Terry Machine:

The microfiber yarn PES/PA (80/20 or 85/15 composition) used could improve the towel surface quality as well as the water-absorbing effect.

Cotton yarn is also available on A-ZEN terry machines, such as the combed cotton 21S, and 32S used on GB1 and GB4. Cotton terry cloth has a better water-absorbing advantage, also it is softer and skin-friendly.

Zig-zag Patterns Available:
Compared with the traditional TS4-C ;terry warp knitting machine, TS4-EL has prominent advantages in its pattern development, such as zig-zag, wave, and square patterns. Both models have excellent large-scale productivity.

Main Features:

1. Stable Working Performance

The large working width and high-speed performance make the TS4-C towel knitting machine an exceptionally productive solution for terry fabric manufacturing.
With a 280-inch model, the daily output can reach up to 2 tons, ensuring maximum efficiency for large-scale towel production.

2. Reliable Spare Parts Partners

A-ZEN collaborates with globally recognized suppliers to ensure every warp knitting machine delivers consistent performance and long-term reliability.

(1) Needle Elements: Groz-Beckert, Saxonia

(2) EL Drives: Yaskawa

(3) Bearings: NSK, INA, FAG

(4) Needle Beds & Guide Bars: Reinforced Carbon Fiber Material

(5) Electrical Components: Schneider, Siemens, Omron, INVT

(6) Take-up Belt: Bobotex

3. Overseas Service Team

Türkiye, India, Egypt, Indonesia, Germany, and Iran.

4. Warp-Knitted Towels Are Environmentally Friendly

(1) Energy-Saving Production
The TS4-C warp knitting machine eliminates the need for sizing and desizing, significantly reducing water and energy consumption during production.

(2) Versatile Yarn Compatibility
The TS4-C can process a wide range of yarns — polyester, cotton, and pre-dyed yarns — without requiring additional machine adjustments.

(3) Flexible Finishing Options
Microfiber towels produced on the TS4-C can be embossed, digitally printed, or dyed, offering easy and flexible finishing possibilities.

(4) Durable & Low-Maintenance Design
A-ZEN warp knitting machines are built with high-quality electrical and mechanical components, resulting in longer lifespan and reduced maintenance costs.

PDF Documentation for TS4-EL Terry Machine

PDF Icon TS4-EL Terry Machine Catalogue

Technical Details of TS4-EL Warp-Knitted Terry Machine

Technical Specifications

1. Working Width/Gauge:	186", 218"/E24;
2. Working Speed:	50-1400rpm (Depends on Yarn and Designs);
3. Bars/Knitting Elements:	Individual Needle Bar with Compound Needles, Tongue Needles, 4 Guide Bars. All Bars and Beds are Made of Carbon-fiber-reinforced Material.
4. Pattern Drive System:	EL Drive;
5. Yarn Let-off Device:	EBC Yarn Let-off System;
6. Fabric Take-up:	Electronical Fabric Take-up System;
7. Batching Device:	Electronical Batching Device;
8. Laser Stop Detector and Online Service Program Equipped;
9. Air Blower Device Equipped;
10. Individual Brushing Batching Device.

TS4-EL Terry Machine

microfiber terry towel warp knitting machine

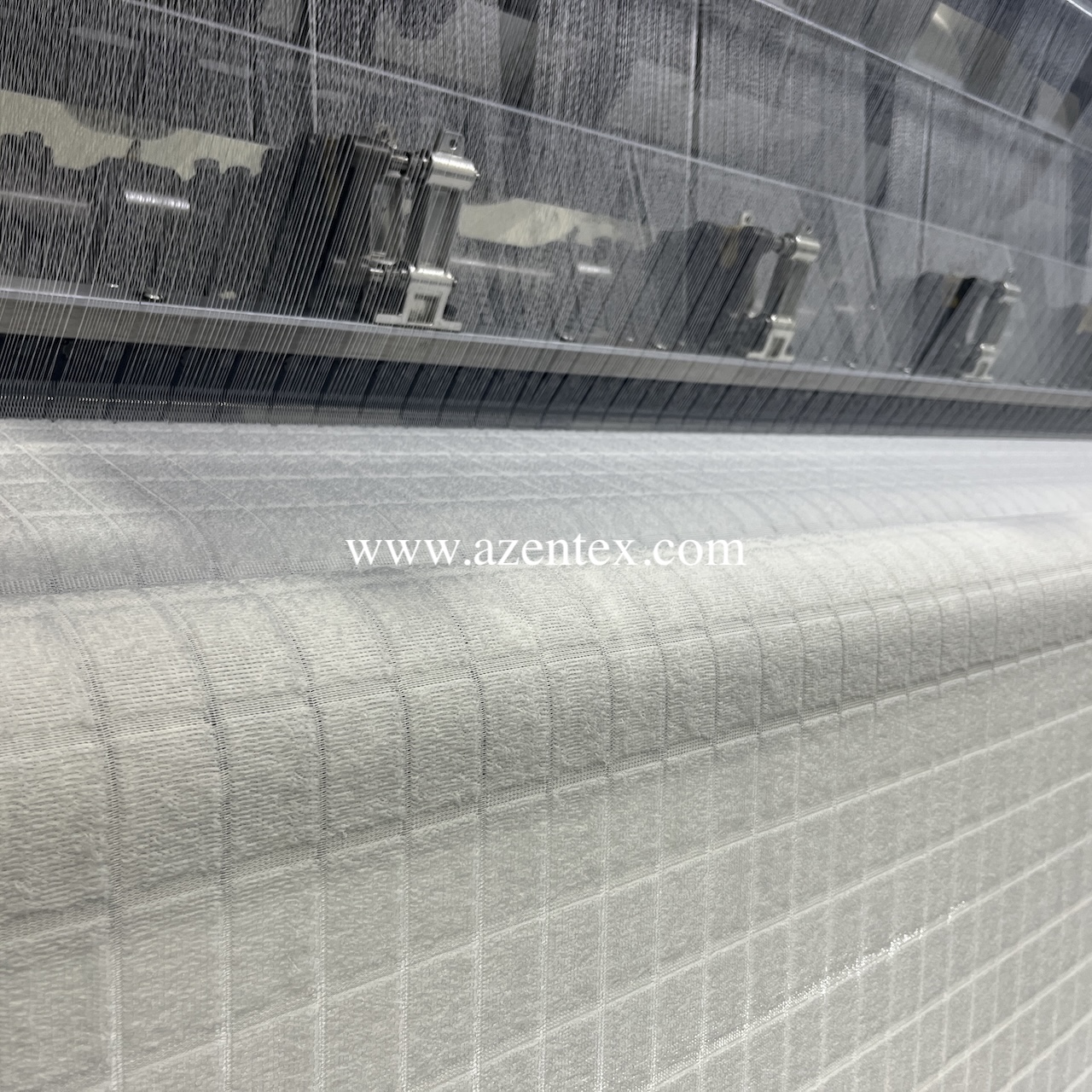

Terry Towel Production

Pattern Control System

towel warp knitting machine control system

User-Friendly Interface

mircofiber towel warp knitting machine a-zen TS4-C

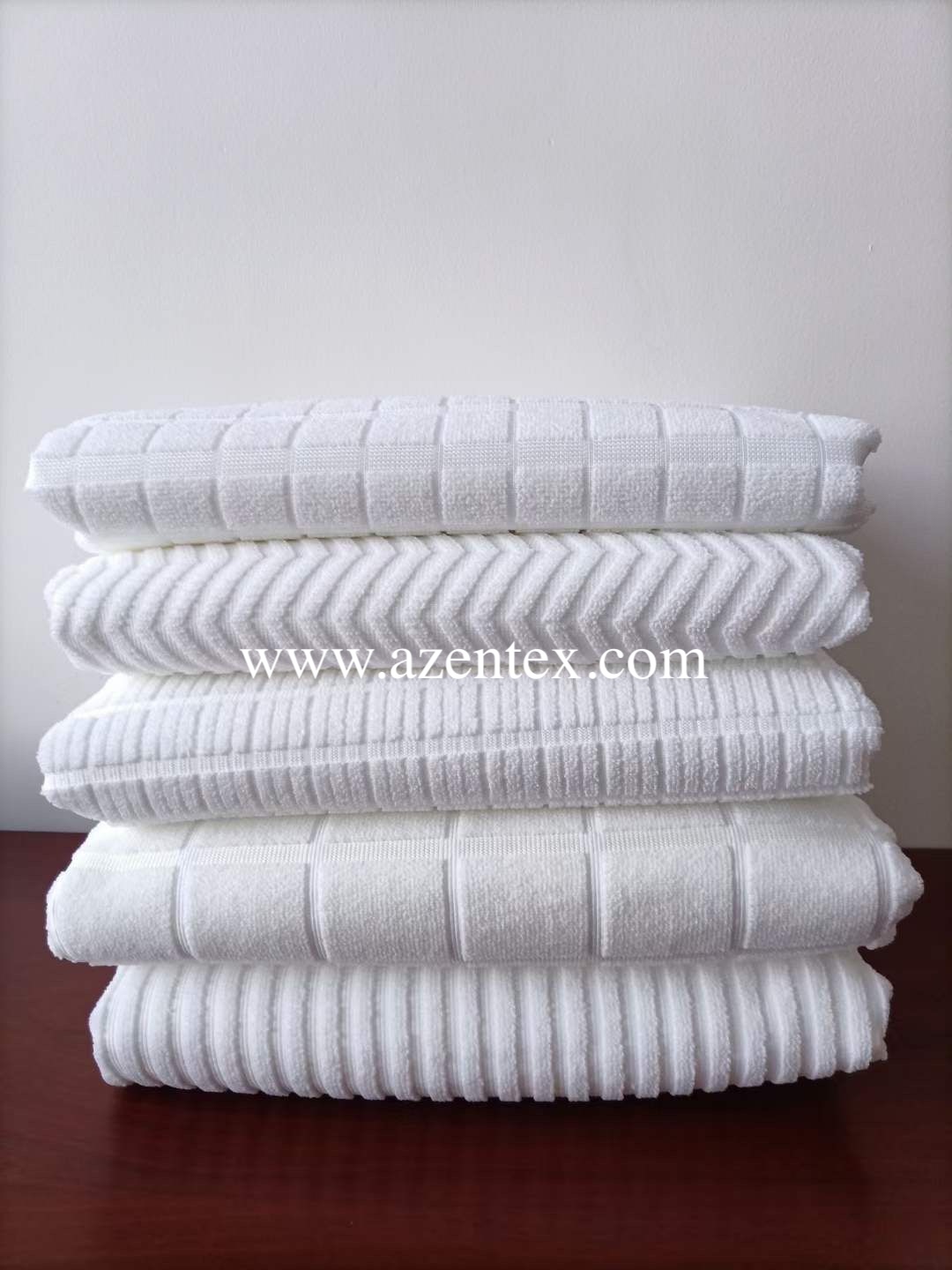

Zigzag Pattern Towel

Microfiber Terry Fabric

Applications of TS4-EL Terry Fabrics

microfiber towel pattern fabrics

microfiber towel pattern fabrics

microfiber towel pattern fabrics

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

TS4-EL vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
AZ2885	90", 100", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
TS4-EL	186", 218"	50–1400	Patterned microfiber/cotton terry towels

Sustainable Textile Production with TS4-EL

The TS4-EL’s energy-efficient EBC system reduces power consumption by up to 15%, and its compatibility with eco-friendly yarns supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About TS4-EL Warp-Knitted Terry Machine

Q: Are u a terry towel machine manufacturer?

A: Yes, we are a terry towel machine manufacturer. We have been producing warp knitting machines and warping machines since 2012, and we established our own trading company in 2017, the brand of which is A-ZEN, which specializes in importing and exporting services.

Q: Do you offer local service if we buy your terry towel warp knitting machines?

A: We provide local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran so far, and we will enlarge our service teams in more countries in the near future. We also provide online technical support.

Q: What is your microfiber terry machine working speed?

A: Our machine's stable working speed is 900-1300rpm (Depends on Yarn and Designs).

Q: How do you ensure your machine's quality

A: Firstly, we produce and provide a large quantity of machines to markets, and our machines' lifespan and quality have been tested by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechnical and electrical parts are durable.

Besides, we offer regular service to customers, including offering regular maintenance reports, local support, an online support mechanism, and factory visits. We not only help our customers run machines at stable performance, but also help them create more value from our machines.
