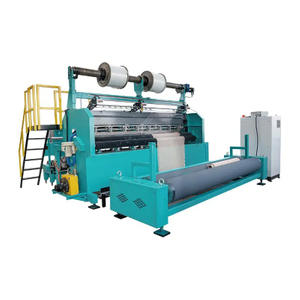

Combined Fiberglass Stitch Bonding Machine

Stitch-bonding machines are warp-knitting machine, they are used for the sewing processing of nonwoven fabric, to increase its fastness and toughness. The Stitch-bonding warp knitting machine or Non-woven warp knitting machine is for producing technical textiles such as shoe interlining, shopping bag, geotextile dewatering bags, reinforced composite glass fiber textile, disposable dish cloth, and other fabrics.

Model:
HBS1-F
Brand:
A-ZEN
Width:
240cm, 330cm, 380cm
Gauge:
F7

Availability:



Inquiry

Product Description

Overview of A-ZEN Fiberglass Stitch Bonding Machine

The Stitch-bonding warp knitting machine or Non-woven warp knitting machine is Fiberglass Cloth Roll - Chopped Strand Mat (4) for producing technical textiles such as shoe interlining, shopping bag, disposable dish cloth, non-woven towels, reinforced composite glass fiber textile and other fabrics.

Changzhou A-ZEN produces high-advanced stitch-bonding warp knitting machine from 1 bar to 4 bars, and the gauge of which are F7, F12, F14, F16, F18, F20, and F22.

Equipped with electronic take-up, electronic batching devices and other advanced functions, A-ZEN stitch bonding machine could reach to Max. 1,200rpm.

PDF Documentation for Fiberglass Stitch Bonding Machine

PDF Icon Fiberglass Stitch Bonding Machine Catalogue

Technical Details of Fiberglass Stitch Bonding Machine

Technical Specifications

1. Working Width:	2800mm, 3300mm, 3800mm;
2. Gauge:	F7;
3. Bars Amount:	1 Bar
4. Working Speed:	50-1,200rpm (Depends on Textile Specification);
5. Stitch Length Variable:	0.5 ~ 5.5mm;
6. Pattern Drive System:	Pattern Disc Drive;
7. Yarn Let-off Device:	Electronic Yarn Let-off System;
8. Fabric Take-up:	Electronic Fabric Take-up System;
9. Batching Device:	Electronic Batching Device;
10. Warp Beam Size:	Φ30"x21";
11. Main Power:	15.5KW.

Innovations & Advantages

Ensures consistent output for technical textiles with reliable operation.
Sourced from top suppliers: Needle Elements (Groz-Beckert, Saxonia), EL Drives (Mitsubishi, Nidec, Yaskawa), Bearings (NSK, INA, FAG), Electrical Elements (Schneider, Siemens, Omron, INVT).
The electronic yarn let-off system reduces energy consumption by up to 15%.
Produces fiberglass mats (100–900 g/m²) with excellent resin compatibility and structural reinforcement.
Versatile stitch length (0.5–5.5mm) for diverse textile applications.

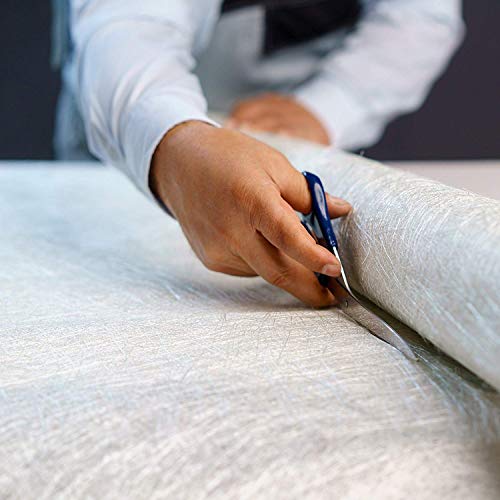

About Glass Fiber Chopped Strand Mat

The glass fiber chopped strand mat is compatible with unsaturated polyester, vinyl ester, epoxy and FIBER GLASS Fiber glass sheet Chopped Strand phenolic resins. The products are most widely used in hand lay-up process and can also be used in filament winding, Compression molding and continuous laminating processes.

The typical end-use applications include various panels, tank, boats, FRP roofing sheet, Auto roof, bathroom equipment and cooling towers etc.

The unit weight of the fiberglass chopped strand mat is from 100g/m2 to 900g/m2, and the normal size of the roll packing width is 1040mm, tape size available from 200mm to 3300mm, depends on customer's request. The binder contect is 4-5%.

Fiberglass mat provides structural reinforcement for stronger repairs and can be used with Polyester resin or epoxy resin. When used with polyester resin, repairs are 100% waterproof, making the products ideal for tub, shower, sink, pool, hot tub, boat repair and more.

Advantages of Glass Fiber Chopped Strand Mat

Fiberglass cloth offers numerous benefits, including a resistance to expansion or contraction as temperatures change. Fiberglass mat will not absorb moisture and is non-flammable. The fiberglass is also resistant to most chemicals

To sum up, the fiberglass mat shows extraordinary advantages as follows:

1. Fiberglass mat is the most commonly used reinforcement in composites;

2. Chopped strand mat is randomly dispersed fiber mat that has equal strength in every direction, and compatible with resin and epoxy;

3. Conforms to tight curves and corners, it can be torn or cut to size.

Applications of Fiberglass Chopped Strand Mat

Glass-Fiber-Chopped-Strand-Mat-Application

Fiberglass

Glass Fiber Chopped Strand Mat Application

Running Video of HBS1-F Model Stitch-bonding Warp Knitting Machine

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

Fiberglass Stitch Bonding Machine vs. Other Warp Knitting Machines

Model	Working Width	Speed (RPM)	Applications
RD6-EL	138", 210"	600-750	3D spacer fabrics, sports shoes, automotive seats
RD7	138", 200"	500-700	General warp knitted fabrics
AZ2885	90", 100", 186", 200"	50-850	Flannel blankets, microfiber cleaning rags, luminous blankets
TH2886EL	100", 138"	50-450	High-and-low pile rabbit fur fabrics, coats, carpets
Fiberglass Stitch Bonding	2800mm, 3300mm, 3800mm	50–1200	Fiberglass mats, shoe interlining, shopping bags, non-woven towels

Sustainable Textile Production with Fiberglass Stitch Bonding Machine

The machine’s energy-efficient electronic yarn let-off system reduces power consumption by up to 15%, and its compatibility with eco-friendly materials supports sustainable textile manufacturing, meeting modern environmental standards.

Sustainable Production

FAQs About Fiberglass Stitch Bonding Machine

Q: Are you a machine manufacturer?

A: Yes, we are a warp knitting machine manufacturer. We produce warp knitting machines and warping machines since 2012, and we have our own trading company in 2017, the brand of which is A-ZEN, which is specialized for importing and exporting service.

Q: Do you offer local service if we buy your stitch-bonding machines?

A: we provide local service in India, Türkiye, Egypt, Indonesia, Pakistan and Iran so far, and we will enlarge our service teams in more countries in the near future. except that, we also provide on-line technical support.

Q: How do you ensure your machine's quality

Firstly, we produce and provide big quantity machines to markets, and our machines' lifespan and quality tested by different markets over the years.

Secondly, we largely use renowned and market-tested spare-part brands, to make sure the mechnical and electrical part are durable.

Besides, we offer reqular service to customers, including offer regular maintenance reports, local support, online support mechanism, and factory visits. We not only help our customers run machines at stable performance, but also help them in creating more values from our machines.
