Warp Knotting Machine

The automatic warp knotting machine or warp tying machine is a highly advanced machine. It is designed for universal use with standard warp yarns in any knitting machines, like warp knitting machines, loom machines, weaving machines, and so on.

Model:
AZBQ198
Brand:
A-ZEN

Availability:



Inquiry

Product Description

Warp Knotting Machine Video

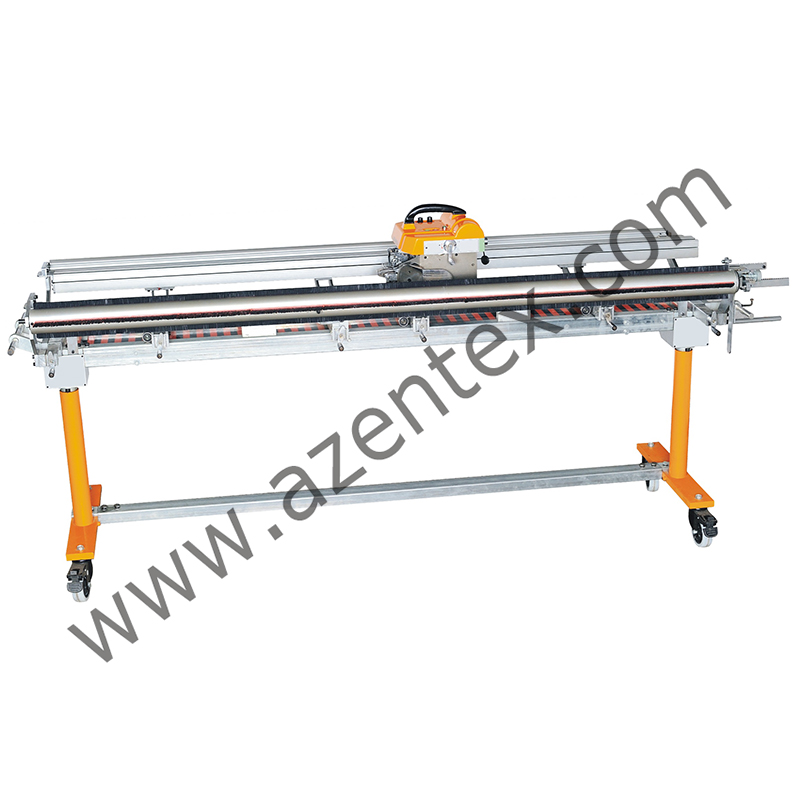

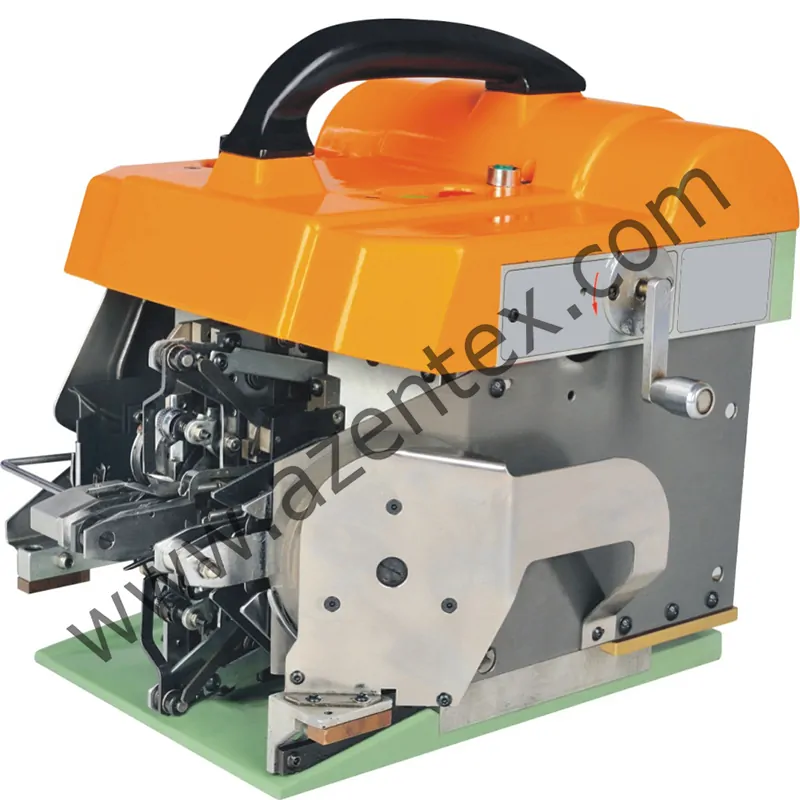

AZBQ198 Automatic Warp Knotting Machine Overview

The AZBQ198 is a world-class automatic warp knotting machine for weaving & warp knitting workshops. With 600 knots/min, single/double knot options, it connects 2s–160s yarns across 50–5200mm frames — ideal for rapier, airjet, waterjet, projectile, and Karl Mayer/Liba warp knitting.

Key Features

600 Knots/Minute: Fastest in class, reduces loom downtime.
Single & Double Knot: Standard (1.5cm tail) & Filament (2.2cm tail).
Universal Yarn Range: Cotton, wool, silk, filament, technical yarns.
Auto Stop Control: Zero missed knots, 99.9% reliability.

Applications

Weaving: Rapier, airjet, waterjet, projectile looms.
Warp Knitting: Lace, velvet, terry, double needle bar (Karl Mayer/Liba).
Technical Textiles: Automotive, medical, industrial fabrics.

AZBQ198 Technical Specifications

Parameter	Without Lease	With Lease	With Lease Double Knot
Knot Type	Single	Single	Double
Yarn Range	2s–160s (short/long fiber)
Yarn Type	Cotton, wool, silk, blended, filament, monofilament, technical yarns
Frame Width	50–5200 mm
Speed	600 knots/min
Stop Control	Automatic
Knot Tail	1.5 cm	1.5 cm	2.2 cm
Power	AC 220V 50Hz
Packing Size	283×72×50 cm (2000mm model)

Product Images

More Warp Knitting Accessories

Need custom knotting solutions or spare parts? Contact us!
