Turtle Velvet Blanket Tricot Machine HTS4EL

The HTS4EL is a high-performance tricot warp knitting machine specifically designed for the production of plush fabrics. Combining advanced technology with precision engineering, this machine delivers exceptional speed, efficiency, and versatility for manufacturers of plush textiles.

Model:
HTS4EL
Brand:
A-ZEN
Width:
290", 340", 370"
Gauge:
E28

Availability:



Inquiry PDF Download

Product Description

Overview of A-ZEN HTS4EL Turtle Velvet Tricot Machine

The A-ZEN HTS4EL Tricot Machine is a high-speed, wide-width warp knitting machine designed for producing turtle velvet (plush) fabrics used in home textiles (blankets, cushions, upholstery) and plush toys. With a working width up to 370" and speeds up to 2100 rpm, it delivers 3x higher output than double-needle bar Raschel machines.

Featuring EL pattern drive, carbon-fiber-reinforced bars, EBC let-off, and large lapping (up to 8 cm), the HTS4EL produces dense, warm, and durable plush with superior heat retention. Its compact footprint and reduced post-processing needs make it a cost-effective alternative to traditional Raschel systems.

A-ZEN offers local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with in-house testing, online support, and detailed manuals.

Turtle Velvet Blanket

Turtle Velvet Cushion

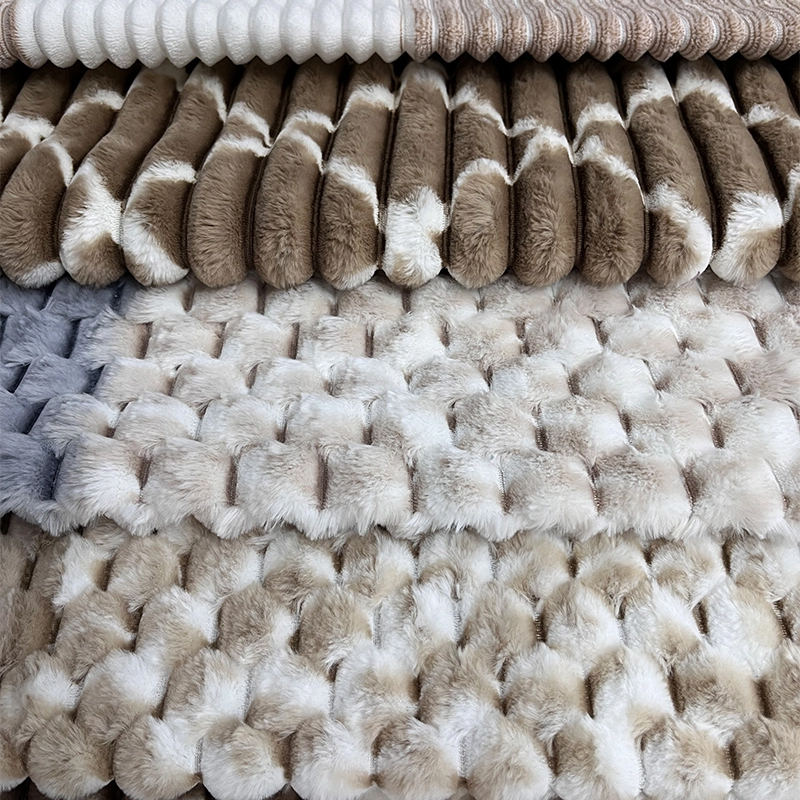

Plush Toy Fabric

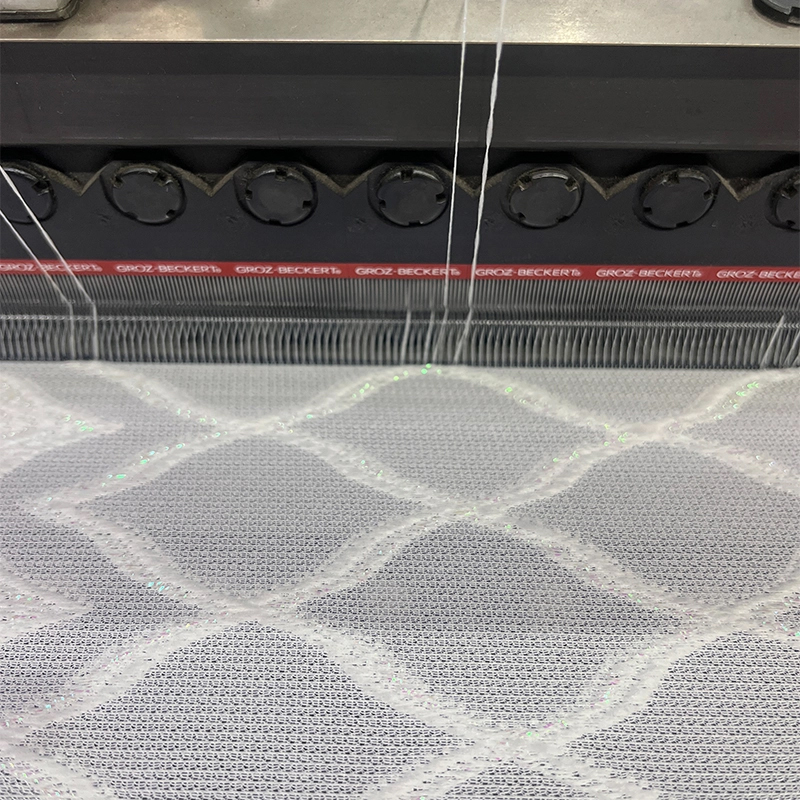

HTS4EL Machine

PDF Documentation for HTS4EL Tricot Machine

PDF Icon HTS4EL Turtle Velvet Tricot Machine Catalogue

Technical Details of HTS4EL Tricot Machine

Technical Specifications

1	Working Width/Gauge	290", 340", 370" / E24, E28
2	Working Speed	50–2000 rpm (up to 2100 rpm)
3	Bars/Knitting Elements	Individual Needle Bar (Compound/Tongue Needles), 4 Guide Bars, Carbon-Fiber-Reinforced
4	Pattern Drive System	EL Drive
5	Yarn Let-off Device	EBC Yarn Let-off System
6	Fabric Take-up	Electronic Fabric Take-up System
7	Batching Device	Electronic Batching Device
8	Laser Stop & Heating Device	Equipped
9	Air Blower Device	Equipped
10	Camera Detector	Optional

Key Advantages

3x Higher Output: Up to 2100 rpm vs. Raschel machines.
Superior Warmth: Dense base and high-weight plush trap heat effectively.
Large Lapping: 8 cm stripe plush in one motion.
Cost-Efficient: Smaller footprint, less post-processing.

340" Wide HTS4EL

8 cm Lapping Stripe

Video: HTS4EL Tricot Machine in Operation

Watch the HTS4EL producing high-weight turtle velvet at full speed.

Advantages of A-ZEN Service

Original Machine Design & Custom Development

A-ZEN offers tailored machine designs and custom development solutions to meet specific client needs, ensuring optimal performance for diverse textile applications.

Original Machine Design & Custom Development

ISO-Standard Assembly and Quality Inspection

Quality Control During Assembly

Professional Packing and Shipping Team

Warp Knitting Machine Delivery

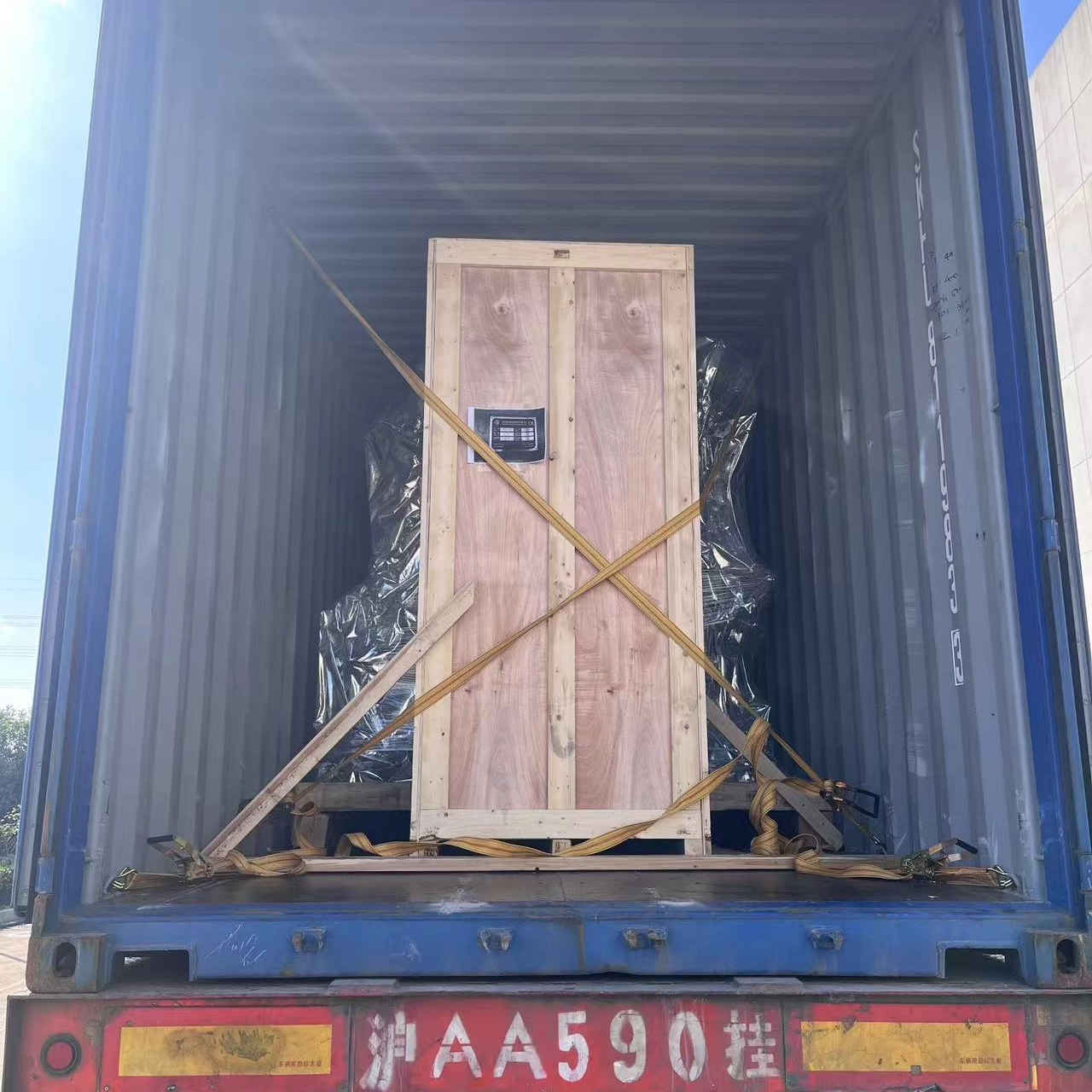

Seaworthy Package

Professional Shipping

Expert After-Sales and Global Service Network

A-ZEN provides local service in India, Türkiye, Egypt, Indonesia, Pakistan, and Iran, with plans to expand further. Our global service teams ensure timely support and maintenance.

FAQs About HTS4EL Turtle Velvet Machine

What is the running speed of the HTS4EL?

Up to 2100 rpm (50–2000 rpm standard), depending on yarn and design — 3x faster than Raschel machines.

Is A-ZEN a manufacturer?

Yes, A-ZEN has been manufacturing warp knitting machines since 2012, with its own factory in Changzhou, China, and A-ZEN brand for global exports since 2017.
