High-Precision Pattern Discs for Warp Knitting Machines

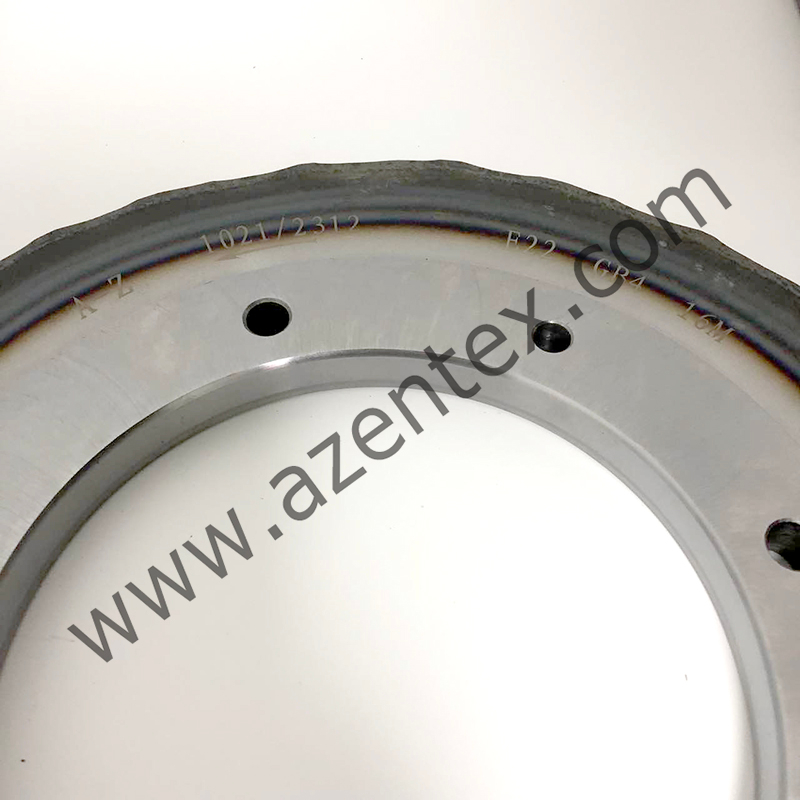

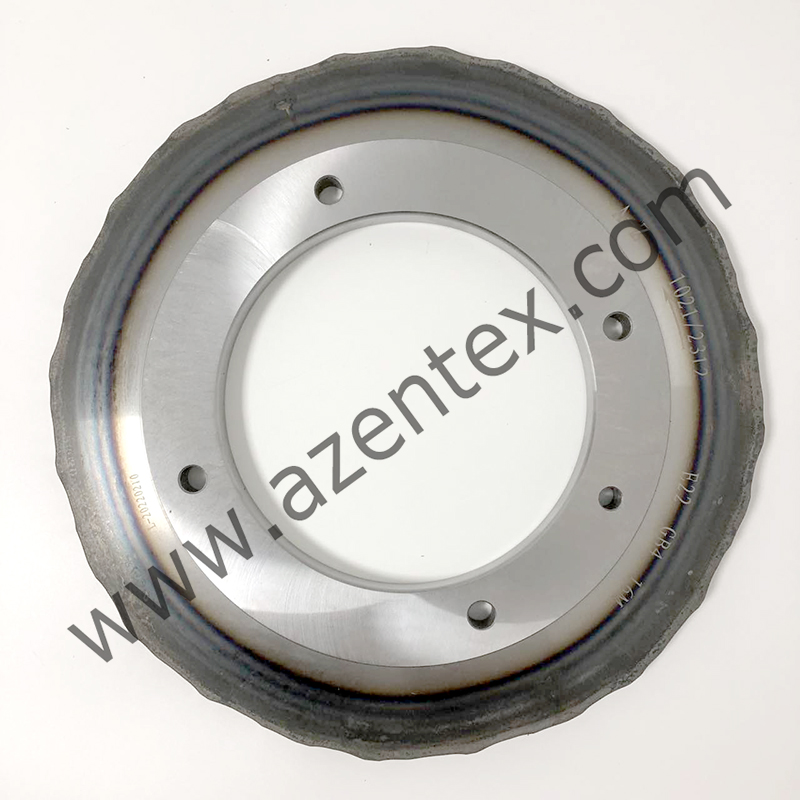

At the core of advanced mechanical textile production lies the pattern disc (or pattern wheel)—a critical accessory engineered to govern the lateral shogging movement of guide bars in warp knitting systems. By converting continuous mechanical rotation into precise, highly controlled, and repeatable stitch sequences, the pattern disc acts as the structural architect behind intricate fabric designs.

Compared to complex electronic EL guide bar controls, mechanical pattern discs remain the most cost-effective, stable, and highly chosen solution for manufacturers focusing on fixed-design, high-volume production.

Key Technical Features & Engineering Benefits:

• Unrivaled Durability for High-Speed Operation: Manufactured from premium, high-grade steel and metal alloys, these discs undergo advanced heat treatment. This allows them to withstand extreme operational speeds (up to 3,500 RPM) while minimizing mechanical wear and production downtime.

• Seamless System Integration: Meticulously engineered with precise positioning holes and custom dimensions to ensure flawless synchronization with the machine's warp system and needle bars.

• Flexible Patterning Configurations: Available in multiple standardized and customized repeats (such as Tempi 10, Tempi 12, or 16:1 ratios) to seamlessly adapt to diverse fabric structures.

• Broad Machine Compatibility: Tailored to fit industry-leading warp knitting machinery, including Karl Mayer (HKS 3, HKS 4, KS2, RSE series) and Liba tricot, Raschel, terry towel, and double-needle bar systems.

Industrial Applications

Whether producing high-stretch sportswear mesh, delicate lingerie lace, durable automotive fabrics, home textiles, or high-performance technical textiles, premium pattern discs ensure uniform tension and zero pattern distortion across millions of meters of fabric.

Beam Shaft Product Images

Related Products Recommendation

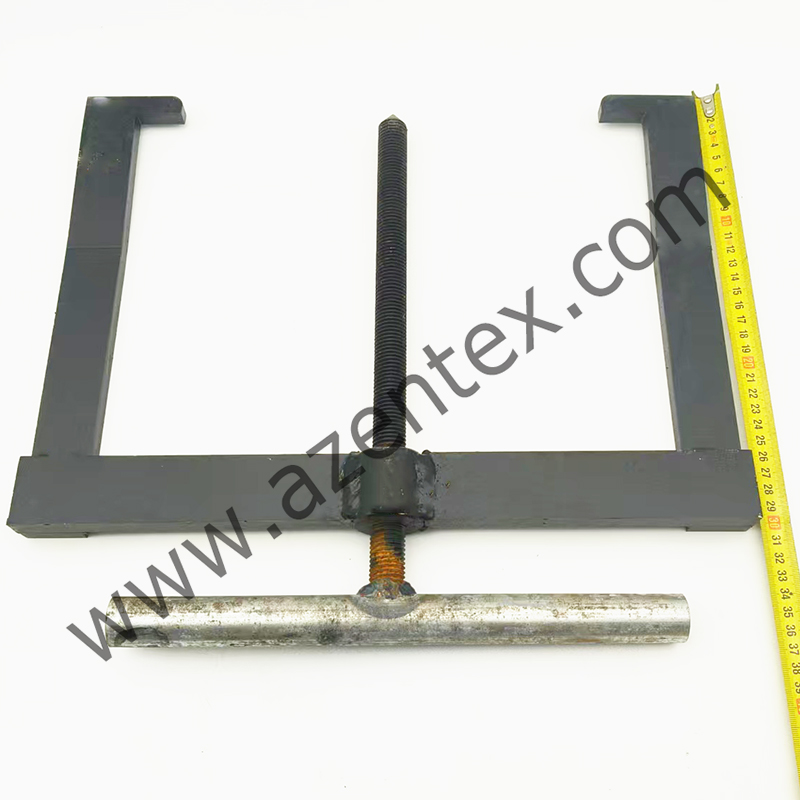

pattern disc tool
