Views: 0 Author: Edison.Lu Publish Time: 2026-07-25 Origin: Site

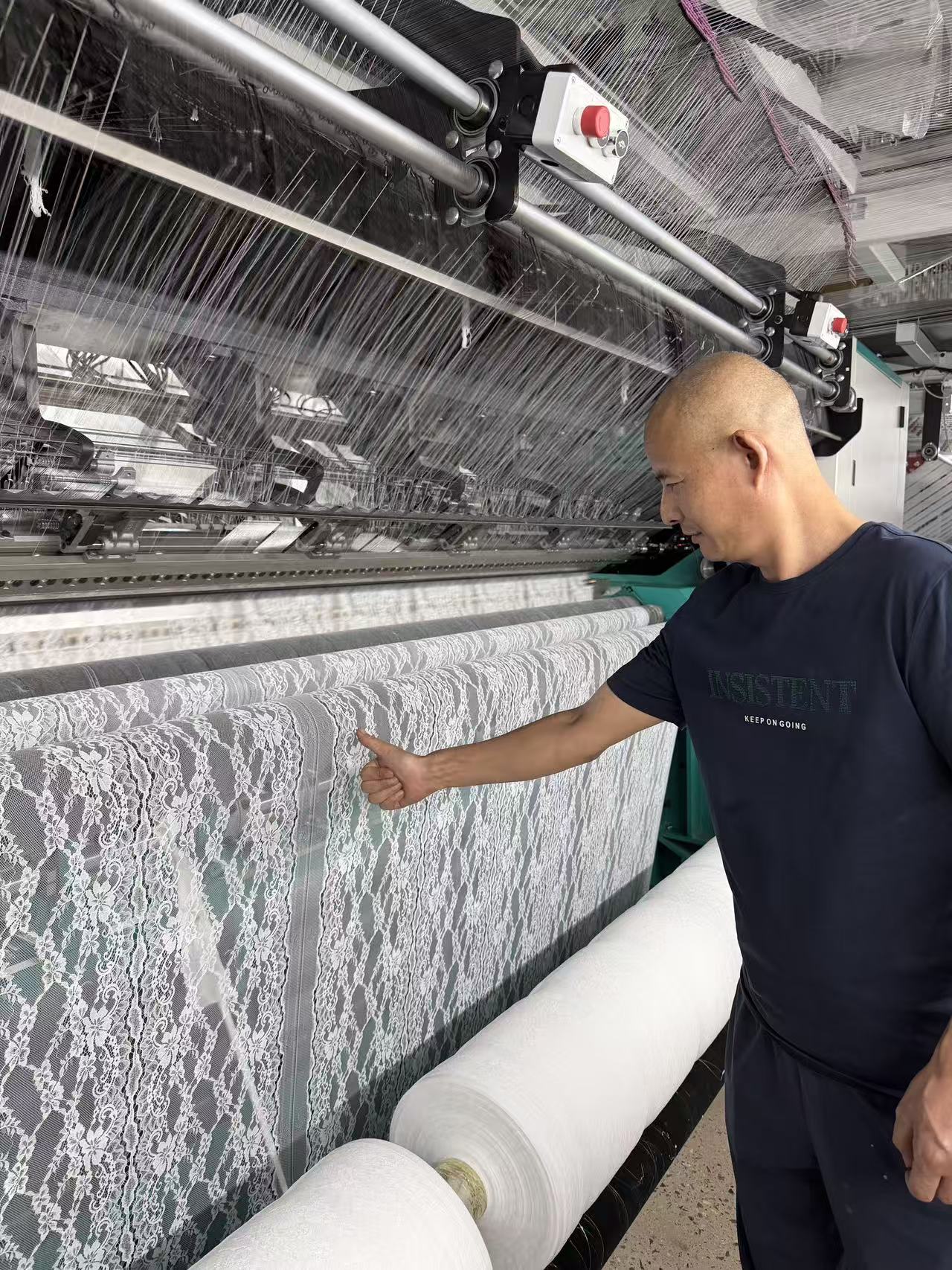

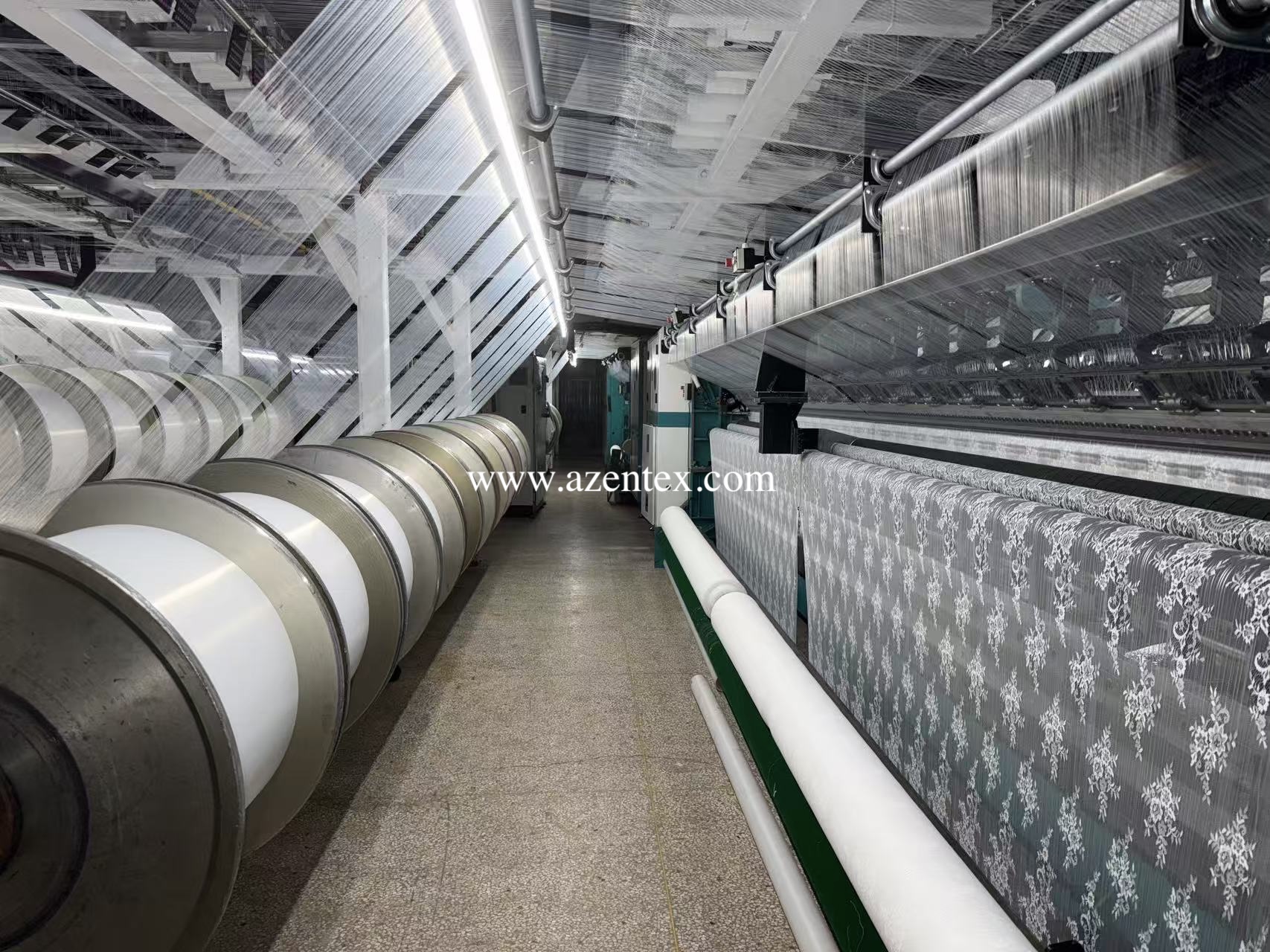

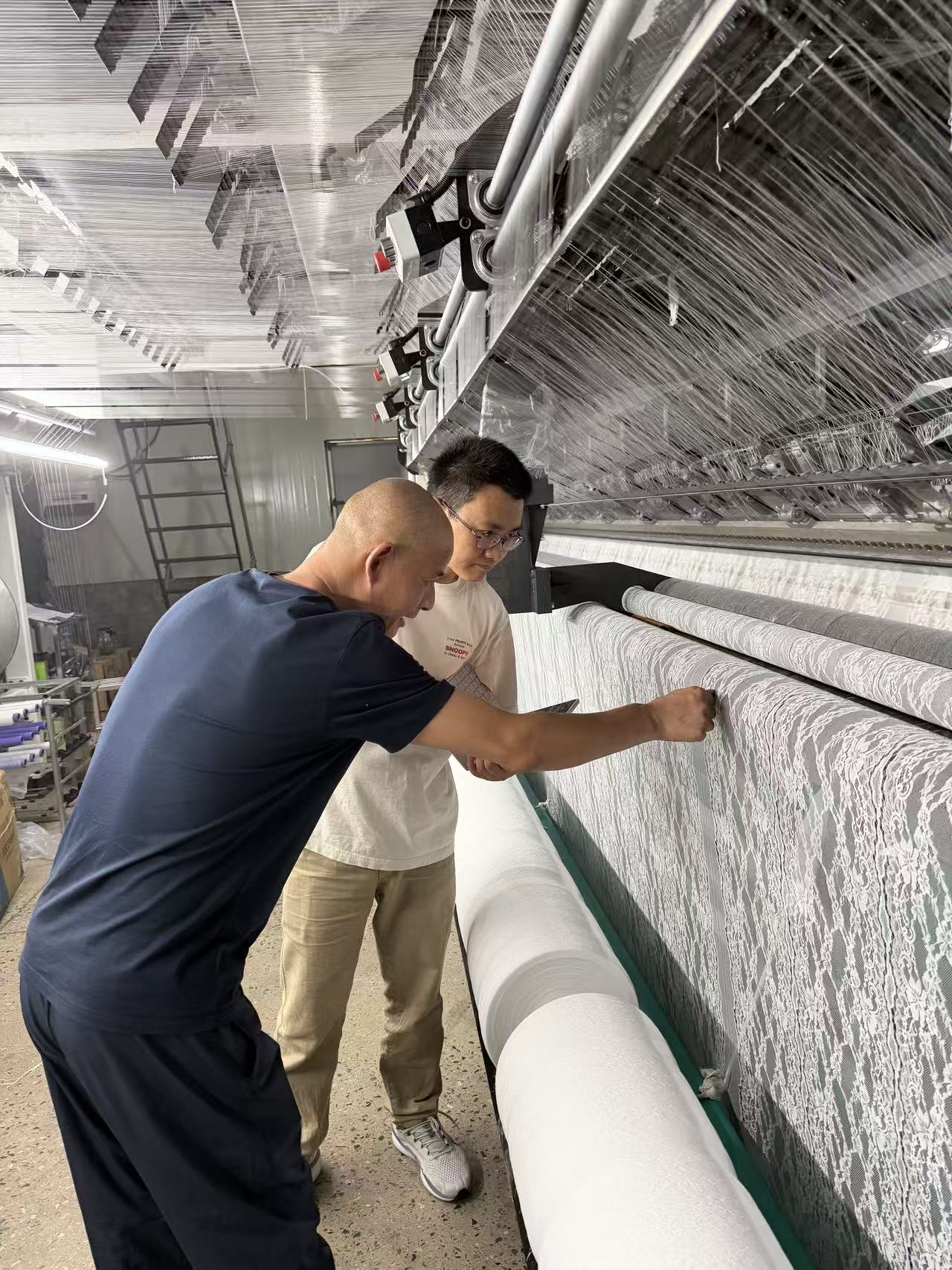

In July 2026, the AZEN technical and sales engineering team visited Changle, Fujian Province—widely recognized as China’s Capital of Lace—for an on-site technical inspection of the AZEN MSJ83/1B multibar jacquard lace warp knitting machine currently being installed at a customer's production facility.
As one of the world's largest industrial hubs for lace and warp knitted fabrics, Changle demands rigorous standards for equipment stability, output volume, and fabric precision. By maintaining a strong presence on the production frontline, AZEN stays directly aligned with the evolving manufacturing needs of core textile hubs.
Technical Parameter | Specification / Feature |
Machine Model | AZEN MSJ83/1B Multibar Jacquard Lace Warp Knitting Machine |
Working Width | 268 inches (Simultaneous production of 4 fabric panels) |
Gauge | E24 (E18 and E28 optional) |
Max Operating Speed | Up to 700 rpm |
Core Structural Material | Carbon fiber construction for pattern needle strips, guide bars, and needle beds |
Target Application | High-end lace trims, all-over lace fabrics, and intricate jacquard patterns |
High-Yield Efficiency: Featuring a 268-inch working width, the MSJ83/1B supports the simultaneous production of four fabric panels at speeds up to 700 rpm, dramatically boosting daily output for lace manufacturers.
Carbon Fiber Stability: Key moving parts—including pattern needle strips, guide bars, and needle beds—utilize lightweight, high-rigidity carbon fiber. This material design ensures smooth high-speed operation, mitigates thermal expansion caused by ambient temperature fluctuations, and significantly lowers the risk of needle collisions.

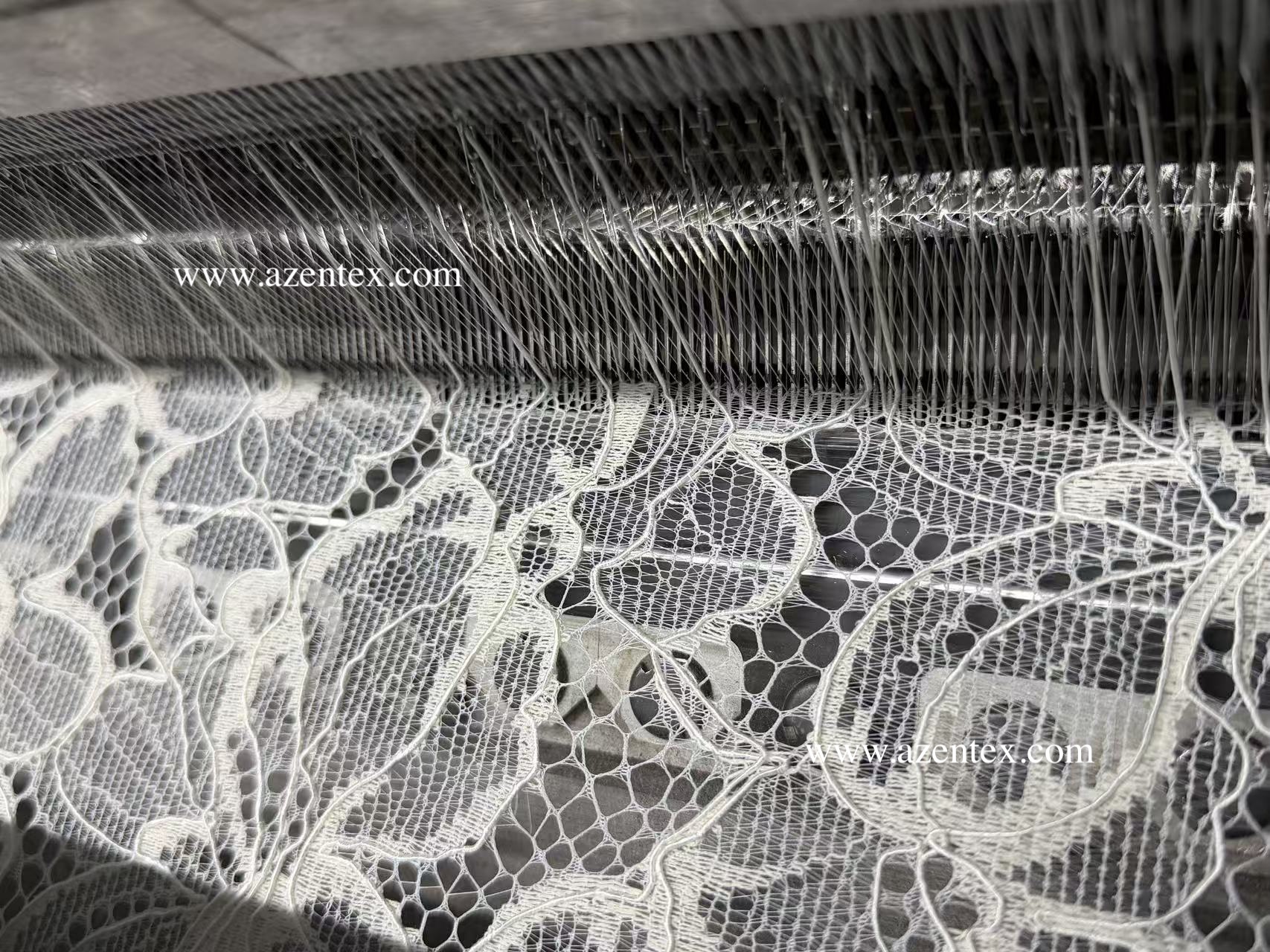

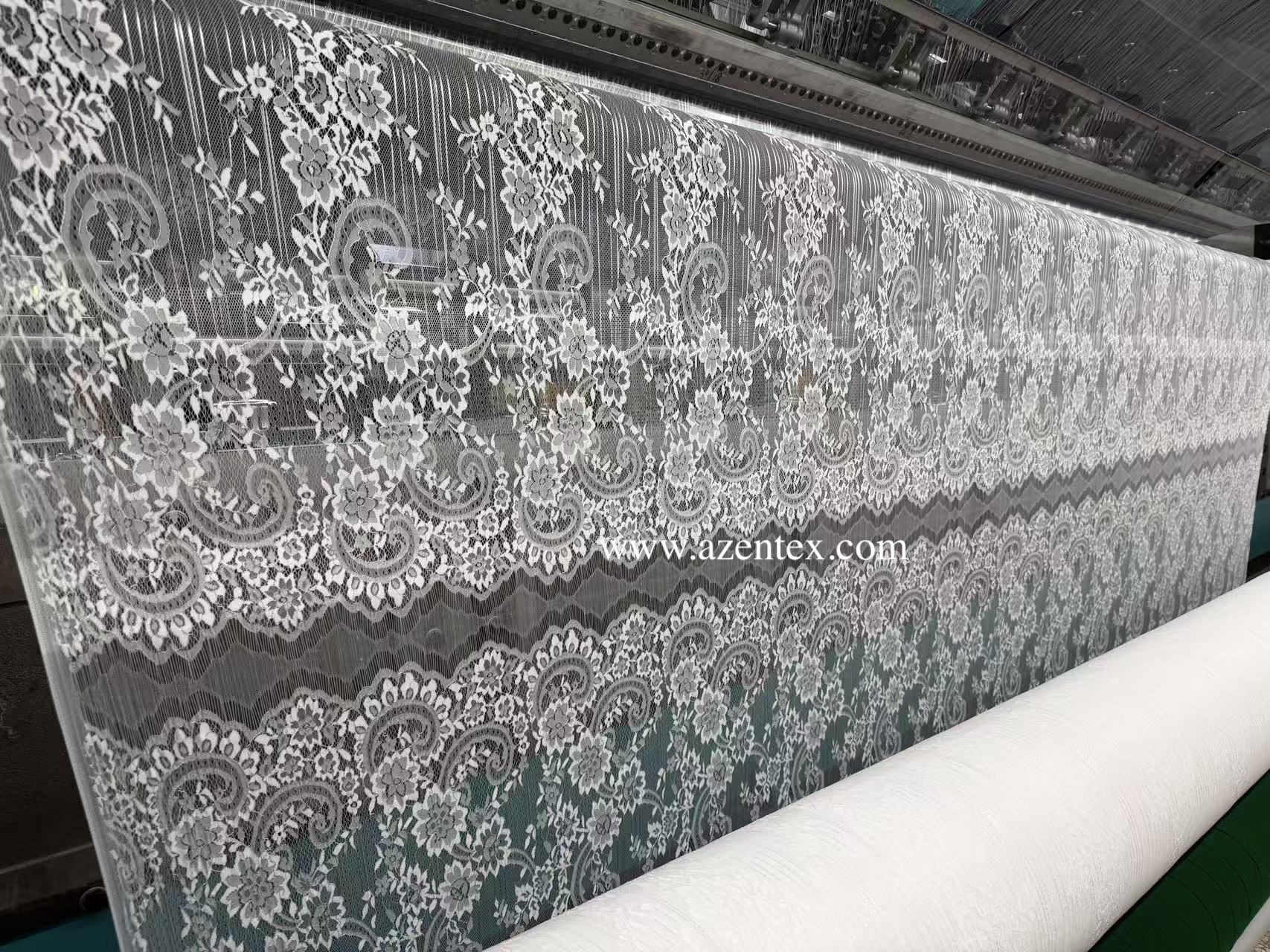

Superior Fabric Quality: Practical trials demonstrate that fabrics produced on the MSJ83/1B feature a tight, uniform surface texture and clear pattern definition, earning praise from regional lace producers during technical reviews.
Q1: Can AZEN provide customized warp knitting equipment for specific production needs?
A1: Yes. Beyond standardized machinery, AZEN offers tailored engineering solutions, custom machine design, and full-lifecycle technical support to meet specialized fabric development requirements.
Q2: Why is carbon fiber used in the AZEN MSJ83/1B guide bars and needle beds?
A2: Carbon fiber minimizes moving weight and resists thermal expansion. This keeps the machine running stably at 700 rpm without speed drops or needle misalignment caused by factory temperature shifts.
 |  |
 |  |
